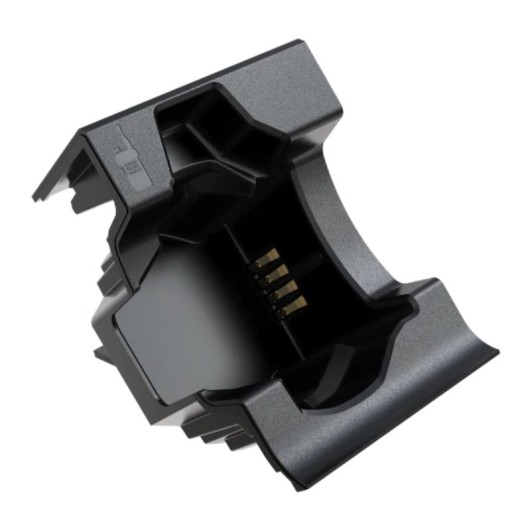

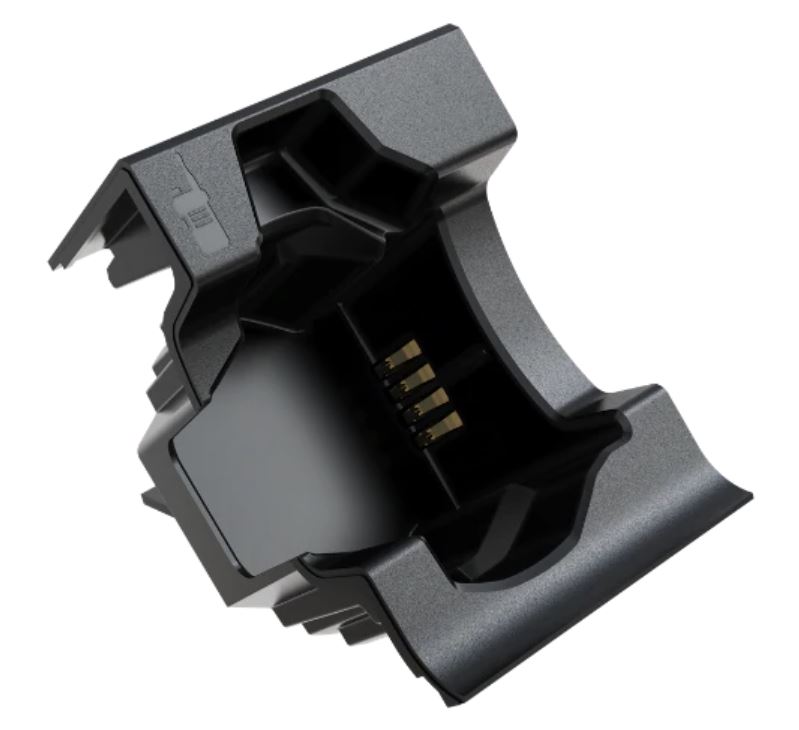

Motorola NNTN9212A APX NEXT Charger Pocket for NNTN8844

The Motorola NNTN9212A is an OEM replacement charging-pocket insert that enables a compatible Motorola NNTN8844 IMPRES 2 multi-unit charger to charge APX NEXT radios and batteries.

This field-installable pocket gives organizations a cost-effective way to update an existing NNTN8844 charger instead of replacing the entire multi-unit charging system. One or more traditional APX pockets can be replaced with NNTN9212 pockets, allowing the charger to support a transitional mixed fleet or be fully converted for APX NEXT use.

The NNTN9212 is a charger component only. It is not a complete charger, does not include an AC power supply, and cannot charge a radio or battery unless it is properly installed in a compatible NNTN8844 charger base.

Motorola NNTN9212 Quick Specifications

Important: The NNTN9212 Is Not a Complete Charger

The NNTN9212 is frequently described as an adapter cup, charger cup or charging pocket. It is not a complete single-unit charger and cannot be connected directly to AC power.

To use the NNTN9212, you must already have:

• A compatible Motorola NNTN8844 IMPRES 2 multi-unit charger

• An available charging position to convert

• The correct charger software

• Appropriate installation tools

• A supported APX NEXT radio or battery

Buyers who do not already own an NNTN8844 should generally consider a complete APX NEXT charger such as the NNTN9115, NNTN9199, PMPN4604 or PMPN4591.

What Charger Does the NNTN9212 Fit?

The NNTN9212 is designed specifically for the Motorola NNTN8844 IMPRES 2 multi-unit charger.

It should not be assumed compatible with:

• Motorola NNTN9115

• Motorola PMPN4591

• Motorola PMPN4604

• Motorola NNTN9199

• Motorola PMPN4594

• Motorola WPLN-series chargers

• Motorola XTS multi-unit chargers

• Aftermarket charging stations

Other charger families use different charging pockets, electrical connections or mechanical designs.

What Radios Does the NNTN9212 Work With?

When correctly installed in a compatible NNTN8844 charger, the NNTN9212 supports the following radio families:

• Motorola APX NEXT

• Motorola APX NEXT XE

• Motorola APX NEXT XN

The charging pocket can accept a compatible battery by itself or while it is attached to the radio.

Browse the Motorola APX NEXT product category or read the complete Motorola APX radio guide for additional compatibility information.

Does the NNTN9212 Work with APX N70 Radios?

The NNTN9212 was developed as the APX NEXT conversion pocket for the NNTN8844 charger. It should not automatically be treated as the current pocket for APX N70, APX N70 XE, APX N50 or APX N30 radios.

Newer APX N-series installations may require an AS000178-series pocket or another charger configuration. Confirm the exact pocket, charger firmware and radio model before attempting to charge an APX N-series battery.

APX NEXT Batteries Compatible with the NNTN9212

When installed in a compatible NNTN8844 charger, the NNTN9212 supports approved Motorola IMPRES 2 batteries for the APX NEXT platform.

Compatibility with recently introduced battery revisions may depend on the NNTN8844 charger software. Confirm the battery revision and charger firmware before ordering equipment for a large fleet.

Browse additional Motorola two-way radio batteries.

Convert One Pocket or the Entire Charger

One of the main advantages of the NNTN9212 is the ability to update an NNTN8844 charger gradually.

Single-Pocket Conversion

Replace one traditional APX charging position with an NNTN9212. This provides one APX NEXT position while preserving five positions for traditional APX radios and batteries.

This arrangement is useful for:

• Agencies beginning an APX NEXT deployment

• Supervisors testing new radios

• Mixed fleets with only a few APX NEXT users

• Departments replacing radios over several budget cycles

Partial Mixed-Fleet Conversion

Install two or more NNTN9212 pockets while retaining some traditional APX pockets. The charger can then support both radio platforms in one location.

Complete APX NEXT Conversion

Replace all six compatible pockets with NNTN9212 inserts. This converts the NNTN8844 into an APX NEXT-focused multi-unit charger.

Six NNTN9212 pockets are required to convert all six charging positions. Purchasing one NNTN9212 adds or replaces only one charging pocket.

NNTN9212 Installation and Software Requirements

The NNTN9212 is field installable, but replacing a charger pocket requires partial disassembly of the NNTN8844.

Installation may require:

• Clean work area

• Torx T10 screwdriver or bit

• Torque-controlled screwdriver

• Proper electrostatic-discharge precautions

• Charger firmware verification

• Charger reprogramming or software update

• Functional testing after installation

Motorola publishes a service manual specifically for replacing NNTN9212 and NNTN9213 pocket inserts.

Installation should be performed by a qualified Motorola technician or an experienced radio-equipment service provider. Incorrect installation can damage the pocket, charger or battery and may affect warranty coverage.

Does the NNTN9212 Retain the Charger Display?

Yes. The NNTN9212 works with the corresponding information display already built into a compatible six-display NNTN8844 charger.

Depending on the battery and charger software, the display may provide information such as:

• Charging status

• Battery part number

• Battery serial number

• Rated battery capacity

• Current available capacity

• Initial or “day one” capacity

• Calibration status

• Reconditioning status

• Battery service information

The information is generated by the NNTN8844 charging system. The NNTN9212 itself does not contain a separate display.

IMPRES 2 Charging Benefits

Once the NNTN9212 is installed, the NNTN8844 continues to provide Motorola IMPRES 2 charging and battery-management capabilities for compatible APX NEXT batteries.

Benefits can include:

• Charging current of up to 3 amps per compatible pocket

• Automatic recognition of compatible IMPRES batteries

• Optimized charging for standard- and high-capacity batteries

• Automated battery calibration

• Battery-health information

• More accurate capacity information

• Storage-mode support

• Battery analysis through the charger display

• Reduced need for manual battery maintenance

• Improved fleet-level battery visibility

Actual battery service life depends on battery age, radio settings, transmission activity, operating temperature, storage and charging practices.

NNTN9212 vs NNTN9115

The NNTN9212 updates an existing charger, while the NNTN9115 is a complete APX NEXT multi-unit charger.

Choose the NNTN9212 when you already own a compatible NNTN8844 and want to add APX NEXT charging.

Choose the Motorola NNTN9115 six-unit charger when purchasing a complete charging system for an APX NEXT fleet.

NNTN9212 vs NNTN9213

Both parts are service replacement pocket inserts for compatible Motorola IMPRES 2 multi-unit chargers, but they are designed for different radio and battery platforms.

The NNTN9212 is specifically associated with APX NEXT conversion of the NNTN8844. Do not substitute an NNTN9213 or another pocket based only on physical appearance.

Verify the charger model, radio family and battery part number before ordering either insert.

NNTN9212 vs AS000178A01 / AS000178A02

The NNTN9212 is the original APX NEXT conversion pocket associated specifically with the NNTN8844 charger.

The AS000178A01 and AS000178A02 are newer pocket references used with selected Motorola IMPRES 2 multi-unit charging systems for APX NEXT and APX N-series configurations.

Use the pocket specified for the exact charger model and radio fleet.

Alternative Complete Chargers

If you do not already own an NNTN8844, purchasing a complete charger may be more practical than buying an NNTN9212 pocket.

View all available APX NEXT and APX NEXT XN chargers.

NNTN9212 vs Buying a New Charger

Choose the NNTN9212 when:

• You already own a compatible NNTN8844

• The existing charger is in good condition

• Only one or a few APX NEXT positions are needed

• You are transitioning gradually from traditional APX radios

• Mixed-fleet charging is important

• Reusing the existing charger is more economical

Choose a complete new charger when:

• You do not already own an NNTN8844

• All six positions are needed for APX NEXT

• The existing charger is old or damaged

• You need APX N70 support

• You want integrated USB accessory charging

• You want a factory-configured solution

• You do not want to perform a pocket conversion

Other Compatible APX NEXT Products

Complete an APX NEXT equipment system with compatible accessories such as:

• Motorola NNTN9216A 4,400mAh battery

• Motorola NNTN9217A UL-rated battery

• Motorola PMMN4135A APX NEXT speaker microphone

• Motorola PMMN4136A APX NEXT speaker microphone

• Motorola PMMN4138A APX NEXT XN speaker microphone

• Motorola PMMN4154A XVE500 extreme-temperature speaker microphone

• Motorola AN000296A01 APX NEXT antenna

• Motorola AN000297A01 all-band antenna

• Motorola PMLN7948A hybrid leather holster

• Motorola PMLN7947A plastic carry holster

Use the Motorola APX remote speaker microphone guide to compare audio-accessory options.

Is the NNTN9212 HAZLOC Approved?

The NNTN9212 can be used to charge compatible safety-rated APX NEXT batteries, including selected NNTN9217, NNTN9088, NNTN9090, PMNN4812 and PMNN4896 revisions.

However, charging a safety-rated battery does not make the pocket, charger or charging location HAZLOC certified. The NNTN8844 should be operated only in a location approved for battery charging.

Follow Motorola’s instructions and your organization’s hazardous-location procedures.

OEM Motorola vs Replacement Charger Pockets

An OEM Motorola NNTN9212 is engineered for the mechanical, electrical and software requirements of a compatible NNTN8844 charger.

OEM advantages include:

• Correct APX NEXT radio fit

• Correct battery-contact alignment

• IMPRES 2 battery communication

• Support for battery calibration

• Compatibility with the NNTN8844 information display

• Motorola service documentation

• Proper physical mounting

• Manufacturer quality control

• Warranty coverage

An aftermarket pocket may physically fit but may not support IMPRES 2 communication, calibration, battery data or charger firmware requirements.

Frequently Asked Questions

Is NNTN9212 the same as NNTN9212A?

Yes. NNTN9212 is the base product number, while NNTN9212A identifies the complete Motorola revision.

Is the NNTN9212 a complete charger?

No. It is one replacement charging-pocket insert for a compatible NNTN8844 multi-unit charger.

Which charger uses the NNTN9212?

The NNTN9212 is specifically designed for the Motorola NNTN8844 IMPRES 2 multi-unit charger.

How many charging pockets are included?

The NNTN9212 is normally sold as one pocket insert. Six are required to convert all six positions of an NNTN8844.

Does the NNTN9212 include a power supply?

No. It receives power through the NNTN8844 charger after installation.

Does it work with the Motorola APX NEXT?

Yes. It was designed to add APX NEXT charging capability to a compatible NNTN8844.

Does it work with the APX NEXT XE?

Yes. It supports compatible APX NEXT XE radio and battery configurations.

Does it work with the APX NEXT XN?

Yes. It supports compatible APX NEXT XN configurations, including the PMNN4812 battery.

Does it work with APX N70 radios?

Do not assume APX N70 compatibility. A newer AS000178-series pocket or a different charger configuration may be required.

Can it charge a battery without the radio?

Yes. After the pocket is installed, a compatible APX NEXT battery can be inserted directly into the pocket.

Can it charge the radio with its battery attached?

Yes. A compatible APX NEXT radio with its battery installed can be placed in the pocket.

Can traditional APX and APX NEXT pockets be used in the same charger?

Yes. A compatible NNTN8844 can be configured with a combination of traditional APX and APX NEXT pockets, subject to pocket and software requirements.

Is a software update required?

A charger software update or reprogramming may be necessary. Confirm the current NNTN8844 firmware before installation.

Can I install the pocket myself?

The pocket is field installable, but Motorola’s service procedure requires charger disassembly, appropriate tools and software verification. Professional installation is recommended.

Does the pocket include a display?

No. It works with the display built into the corresponding position of a compatible NNTN8844 charger.

Can it charge HAZLOC batteries?

It can charge compatible safety-rated batteries, but the charger must remain in an approved non-hazardous charging location.

What should I buy if I do not own an NNTN8844?

Consider the NNTN9115 or PMPN4591 for six-position charging. For one radio, consider the NNTN9199 or PMPN4604.

Why Buy the Motorola NNTN9212?

The Motorola NNTN9212 provides an economical way to add APX NEXT capability to an existing NNTN8844 IMPRES 2 multi-unit charger. It is especially useful for organizations transitioning gradually from traditional APX radios to the APX NEXT platform.

Before ordering, confirm:

• Your charger is a compatible NNTN8844

• The number of pockets being converted

• The charger’s software version

• The complete radio model

• The battery part number

• Whether mixed-fleet or full conversion is required

• Installation tools and technical support availability
