Motorola identifies the PMPN4604 as an IMPRES 2 single-unit fast charger for APX NEXT and APX N70 platforms. It charges a compatible battery by itself or while attached to the radio and provides charging current of up to 3 amps. shop.motorolasolutions.com

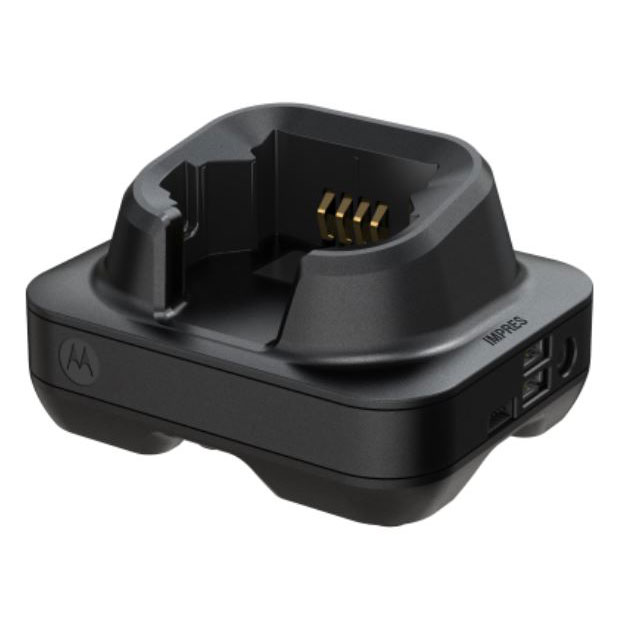

Motorola PMPN4604 IMPRES 2 Single-Unit Fast Charger

The Motorola PMPN4604 is an OEM IMPRES 2 single-unit fast charger designed for compatible Motorola APX NEXT and APX N70-series portable radios and batteries. It can charge a compatible battery by itself or while attached to the radio, making it an excellent desktop charging solution for individual officers, firefighters, supervisors, dispatchers and other radio users.

Capable of delivering up to 3 amps of charging current, the PMPN4604 provides faster charging for supported Motorola IMPRES 2 batteries while automatically managing battery maintenance and calibration. The compact desktop design is ideal for offices, dispatch centers, fire stations, police facilities, equipment rooms and home charging locations.

Motorola PMPN4604 Quick Specifications

What Radios Does the PMPN4604 Work With?

The Motorola PMPN4604 is designed for compatible radios in the following product families:

• Motorola APX NEXT

• Motorola APX NEXT XE

• Motorola APX NEXT XN

• Motorola APX N70

• Motorola APX N70 XE

The exact supported configuration depends on the radio, battery revision and installed charging pocket. Confirm the complete radio and battery part numbers before ordering.

Browse the Motorola APX NEXT product category or read the complete Motorola APX radio guide for additional radio and accessory information.

Does the PMPN4604 Work with APX 6000 or APX 8000 Radios?

No. The PMPN4604 should not be used as a standard charger for batteries made for the following traditional APX radios:

• Motorola APX 6000

• Motorola APX 6000XE

• Motorola APX 7000

• Motorola APX 7000XE

• Motorola APX 8000

• Motorola APX 8000XE

• Motorola APX 900

• Motorola SRX 2200

These radios use a different battery form factor and require a charger with the correct traditional APX charging pocket.

APX NEXT Batteries Compatible with the PMPN4604

The PMPN4604 supports compatible Motorola IMPRES 2 lithium-ion batteries designed for APX NEXT radios.

Battery capacity and product revision letters may change. Confirm the full battery part number and radio configuration before ordering.

APX N70 Batteries Compatible with the PMPN4604

The PMPN4604 also charges Motorola APX N70 and APX N70 XE batteries.

The PMNN4816 is the standard-capacity APX N70 option. The PMNN4817 offers the highest capacity for longer shifts. The PMNN4818 is intended for approved safety-rated configurations.

Browse additional Motorola two-way radio batteries.

Which Battery Is Best for the PMPN4604?

Choose the NNTN9216 for standard APX NEXT use in non-HAZLOC environments.

Choose the NNTN9217 when the APX NEXT configuration requires a compatible UL Division 2 battery.

Choose the NNTN9089, NNTN9090, PMNN4895 or PMNN4896 when maximum APX NEXT runtime is more important than minimum size and weight.

Choose the PMNN4816 for routine APX N70 use and a more compact battery profile.

Choose the PMNN4817 for APX N70 users requiring maximum available capacity for long shifts.

Choose the PMNN4818 when an approved safety-rated APX N70 battery is required.

Motorola IMPRES 2 Charging Technology

IMPRES 2 is Motorola’s intelligent battery-charging and management system. The PMPN4604 communicates with compatible Motorola IMPRES batteries and automatically adjusts charging according to battery condition, temperature, usage history and remaining capacity.

IMPRES 2 benefits include:

• Up to 3-amp fast charging

• Automatic recognition of compatible IMPRES batteries

• Automated battery calibration

• Optimized charging for standard- and high-capacity batteries

• More accurate radio battery-gauge information

• Reduced need for manual battery maintenance

• Support for battery self-calibration

• Improved long-term battery management

• Charging with the battery alone or attached to the radio

Actual charging time and battery life depend on battery capacity, age, condition, temperature, radio settings and usage.

PMPN4604 Charging Time

The PMPN4604 can provide up to 3 amps of charging current. Exact charging time depends on:

• Battery capacity

• Remaining battery charge

• Battery age and condition

• Battery temperature

• Whether calibration is required

• Whether the radio is operating while charging

A partially discharged standard-capacity battery generally charges faster than a completely depleted high-capacity battery. An IMPRES calibration cycle will also take longer than a normal charging cycle.

For the fastest and most consistent charging results, turn the radio off before placing it in the charger.

Charging a Battery Alone or Attached to the Radio

The PMPN4604 offers two convenient charging methods:

Charge the Radio and Battery Together

Place a compatible radio with its battery installed directly into the charging pocket. This is the most convenient option for daily charging after a shift.

Charge a Spare Battery

A compatible battery can be placed directly into the charger without being attached to the radio. This allows users to operate the radio with one battery while charging a spare.

PMPN4604A vs PMPN4604B

PMPN4604 is the base product number. PMPN4604A and PMPN4604B identify Motorola manufacturing or product revisions.

Both revisions are associated with the IMPRES 2 single-unit fast-charging platform. However, buyers should confirm the supplied revision, power supply and radio compatibility when purchasing replacement, open-box or used equipment.

Unless a specific revision is required by an agency contract or equipment standard, the current Motorola-supplied revision is generally the appropriate choice.

PMPN4604 vs NNTN9199

The PMPN4604 and NNTN9199 are both Motorola IMPRES 2 single-unit chargers for compatible APX NEXT batteries.

Choose the PMPN4604 when charging both APX NEXT and APX N70 platforms is important.

Choose the Motorola NNTN9199 for a dedicated APX NEXT single-unit charging installation.

PMPN4604 vs PMPN4591

The PMPN4604 charges one radio or battery, while the PMPN4591 supports a shared fleet.

Choose the PMPN4604 for an individual desk, office or home. Choose the Motorola PMPN4591 six-unit charger when multiple radios must be charged in one location.

PMPN4604 vs NNTN9115

The PMPN4604 is intended for one user, while the NNTN9115 provides six charging positions and six information displays.

The Motorola NNTN9115 is a better option for departments that need to charge several APX NEXT radios together.

Compatible and Alternative Chargers

View the complete selection of APX NEXT and APX NEXT XN chargers.

Replacement Power Supply Options

Common power-supply references associated with the PMPN4604 charging platform include:

• Motorola PS000040A01

• Motorola PS000040A02

• Motorola PS000116A01

The correct power supply depends on the charger revision, input-voltage requirements and whether a separate AC power cord is required.

Do not order a replacement power supply based only on connector appearance. Confirm the exact charger revision and electrical specifications first.

Other Compatible APX NEXT Products

Complete an APX NEXT radio setup with compatible Motorola accessories such as:

• Motorola PMMN4135A APX NEXT speaker microphone

• Motorola PMMN4136A APX NEXT speaker microphone

• Motorola PMMN4138A APX NEXT XN speaker microphone

• Motorola PMMN4154A XVE500 extreme-temperature speaker microphone

• Motorola AN000296A01 APX NEXT antenna

• Motorola AN000297A01 all-band antenna

• Motorola PMLN7948A hybrid leather holster

• Motorola PMLN7947A plastic carry holster

• Motorola PMLN8120A listen-only earpiece

Read the Motorola APX remote speaker microphone guide to compare compatible microphone options.

Other Compatible APX N70 Products

Compatible APX N70 accessories include:

• Motorola PMNN4817A 4,400mAh battery

• Motorola PMLN8371A plastic carry holster

• Motorola PMLN8372A hybrid holster for the standard battery

• Motorola PMLN8373A hybrid holster for the high-capacity battery

• Motorola PMKN4265A programming cable

• Motorola PMLN8297A NEXUS PTT adapter

Accessory compatibility depends on the radio model, battery thickness, firmware and required safety classification.

Is the PMPN4604 HAZLOC Approved?

The PMPN4604 should not be operated in a hazardous atmosphere unless the charging equipment and location are specifically approved for that use.

The charger can charge compatible safety-rated batteries, including selected NNTN9217, NNTN9088, NNTN9090, PMNN4812, PMNN4818 and PMNN4896 revisions. However, charging a safety-rated battery does not make the charger itself HAZLOC certified.

Safety-rated batteries should be charged in a designated non-hazardous area according to agency procedures and applicable safety requirements.

OEM Motorola vs Replacement Chargers

An OEM Motorola PMPN4604 is designed to communicate with compatible Motorola IMPRES and IMPRES 2 batteries. This communication supports battery calibration, capacity information and optimized charging that may not be available from a basic replacement charger.

OEM benefits include:

• Motorola IMPRES 2 battery communication

• Up to 3-amp fast charging

• Automatic battery calibration

• Correct charging-pocket fit

• Charging with the battery alone or attached to the radio

• Support for standard- and high-capacity batteries

• Manufacturer quality control

• Motorola warranty coverage

• Compatibility with Motorola battery-maintenance procedures

An aftermarket charger may provide basic charging at a lower cost. Before ordering a replacement charger, confirm support for:

• The exact radio model

• The exact battery part number

• Charging with the radio attached

• IMPRES 2 communication

• Automatic battery calibration

• Standard- and high-capacity batteries

• Safety-rated battery configurations

Frequently Asked Questions

Is PMPN4604 the same as PMPN4604A or PMPN4604B?

PMPN4604 is the base part number. PMPN4604A and PMPN4604B identify Motorola product revisions. Confirm the revision supplied when ordering.

Does the PMPN4604 work with the Motorola APX NEXT?

Yes. It charges compatible Motorola APX NEXT radios and batteries.

Does it work with the APX NEXT XE?

Yes. The PMPN4604 supports compatible APX NEXT XE batteries and radio configurations.

Does it work with the APX NEXT XN?

Yes. It supports compatible APX NEXT XN configurations, including the approved PMNN4812 battery.

Does the PMPN4604 work with the APX N70?

Yes. It supports compatible APX N70 and APX N70 XE radios and batteries.

Does it charge APX N30 or APX N50 batteries?

The PMPN4820 and PMPN4594 are the more appropriate charging options for APX N30 and APX N50 batteries. Do not assume PMNN4813 or PMNN4815 compatibility with the PMPN4604.

Can the PMPN4604 charge a battery without the radio?

Yes. A compatible battery can be inserted directly into the charging pocket.

Can it charge a radio with its battery attached?

Yes. A compatible radio can be placed in the charger with the battery installed.

Is the PMPN4604 a fast charger?

Yes. It is an IMPRES 2 fast charger capable of providing up to 3 amps to a compatible battery.

Does the charger include a power supply?

The complete US/North American charger kit normally includes the appropriate power supply. Confirm package contents when purchasing a used, open-box or replacement charger base.

Can the PMPN4604 charge a HAZLOC battery?

It can charge compatible safety-rated batteries. However, the charger must be operated in an approved non-hazardous charging area.

Will it charge APX 6000 or APX 8000 batteries?

No. Those radios use a different battery and charger platform.

What is the best single-unit alternative?

The NNTN9199 is the closest single-unit alternative for compatible APX NEXT radios and batteries.

What is the best multi-unit alternative?

The PMPN4591 is the closest fleet-charging alternative for organizations using APX NEXT and APX N70 radios. It provides six charging positions, six displays and six integrated USB ports.

What is the best APX NEXT vehicle charger?

The PMPN4639 or PMPN4640 is appropriate for supported APX NEXT vehicle installations. APX N70 batteries may require the PMPN4649 adapter.

Why Buy the Motorola PMPN4604?

The Motorola PMPN4604 combines fast charging, IMPRES 2 battery management and broad APX NEXT/APX N70 compatibility in a compact single-position desktop charger. It is an excellent choice for individual users who need dependable charging without the size or expense of a multi-unit charging station.

Before ordering, confirm:

• Complete radio model

• Battery part number

• Required UL or HAZLOC classification

• Charger revision

• Power-supply requirements

• North American plug configuration

Contact Battery Distributors for help matching the PMPN4604 with the correct APX NEXT or APX N70 batteries, chargers, power supplies, microphones, antennas, cases and other compatible accessories.
