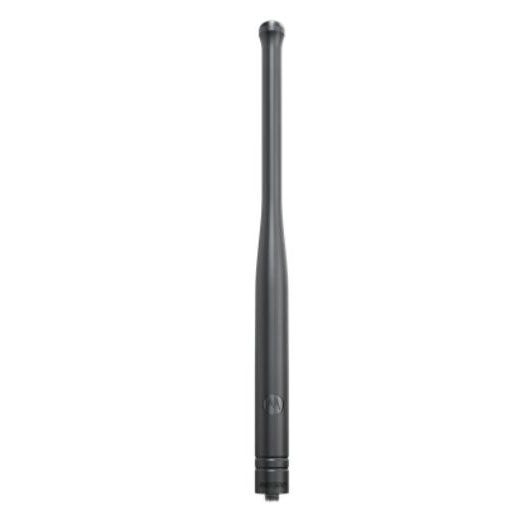

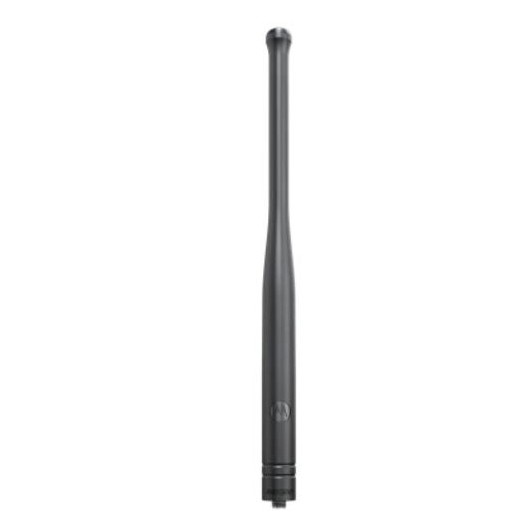

Motorola AN000297A01 All-Band Whip Antenna for APX NEXT & APX NEXT XE

Motorola AN000297A01 All-Band Whip Antenna for APX NEXT & APX NEXT XE

The Motorola AN000297A01 is a genuine Motorola Solutions all-band whip antenna built for the APX NEXT and APX NEXT XE portable radios. One antenna covers VHF (136–174 MHz), UHF (380–520 MHz) and 700/800 MHz (760–870 MHz), so a multi-band APX NEXT can move between systems without an antenna swap.

Motorola redesigned this antenna family for wearability. The AN000297A01 uses a newer polymer that Motorola rates as 40% more flexible than its traditional antennas, so it bends with the user instead of digging into a shoulder, vest or seat belt. It is a direct OEM replacement for a lost, bent or damaged APX NEXT all-band antenna.

Motorola AN000297A01 Key Features

• Genuine Motorola Solutions OEM antenna, part number AN000297A01
• All-band coverage: VHF, UHF and 700/800 MHz in a single antenna
• Flexible whip design, 7.9 inches (20 cm) long
• Polymer construction with 40% better flexibility
• SMA-female mount for a secure fit on APX NEXT radios
• Lightweight at about 34 grams (1.2 oz)
• Accepts Motorola colored antenna ID bands for identifying user groups
• 1-year warranty
• Radio sold separately

AN000297A01 Specifications

What Radios Does the AN000297A01 Fit?

The AN000297A01 is made for the Motorola APX NEXT platform:

• Motorola APX NEXT all-band portable radio: shop all APX NEXT batteries and accessories
• Motorola APX NEXT XE all-band portable radio: shop all APX NEXT XE batteries and accessories

Does the AN000297A01 work with the Motorola APX 6000 or APX 8000?

No. The AN000297A01 is designed for APX NEXT and APX NEXT XE. Motorola states that APX NEXT antennas should not be used with older APX-family radios such as the APX 6000 and APX 8000 because the antenna/GPS architecture is different.

Radios the AN000297A01 Does Not Fit

• APX 6000, APX 7000, APX 8000 and other earlier APX portables. Those radios need an antenna with GPS hardware built in. APX NEXT antennas have none because the GPS receiver is inside the radio, so Motorola states they cannot be used on other APX models.
• APX NEXT XN. This radio uses its own all-band antenna.
• APX N30, APX N50 and APX N70. The N-series radios use a different antenna family.

Not sure which antenna your radio takes? Contact Battery Distributors with your radio model and we will confirm the correct part.

Alternative Antennas for APX NEXT and APX NEXT XE

The AN000297A01 is the right choice when you need every band. If your agency runs on a single band, a shorter antenna is a lower-profile option.

Compare Motorola APX NEXT radio antennas

Choose the AN000297A01 if:

Your APX NEXT operates on more than one band, you work mutual aid across VHF, UHF and 700/800 systems, or you want full coverage from one antenna.

Choose the AN000296A01 if:

You operate only on a 700/800 MHz system and want the shortest antenna available. See the Motorola AN000296A01 700/800 MHz Stubby Antenna.

Choose the AN000393A01 if:

You operate only on UHF and want a shorter whip. See the Motorola AN000393A01 UHF Whip Antenna.

Antenna ID Bands for the AN000297A01

Motorola antenna ID bands slip over the antenna so you can tell radios apart by shift, unit or talkgroup at a glance. On the APX NEXT antenna line, Motorola lists the colored bands for the all-band antenna only. Each pack contains 10 bands.

• Gray Antenna ID Bands, 32012144001
• Yellow Antenna ID Bands, 32012144002
• Green Antenna ID Bands, 32012144003
• Blue Antenna ID Bands, 32012144004
• Purple Antenna ID Bands, 32012144005

More Accessories for the APX NEXT and APX NEXT XE

Batteries

• Motorola NNTN9216 IMPRES 2 Battery, 4400mAh
• Motorola NNTN9217 IMPRES 2 UL Division 2 Battery, 4400mAh

Chargers

• Motorola NNTN9199A IMPRES 2 Single-Unit Charger
• Motorola NNTN9115A IMPRES 2 Six-Unit Charger

Speaker Microphones

• Motorola PMMN4135 XVP850 Remote Speaker Mic with channel knob
• Motorola PMMN4136 XVP830 Remote Speaker Mic

Carry Accessories

• Motorola PMLN7947 Plastic Carry Holster
• Motorola PMLN7948 Hybrid Leather Holster
• Motorola PMLN7965 3-Inch Belt Clip
• Motorola NTN8266 2.5-Inch Belt Clip

Frequently Asked Questions

What is the Motorola AN000297A01?

It is Motorola's all-band flexible whip antenna for the APX NEXT and APX NEXT XE. It covers VHF, UHF and 700/800 MHz.

What radios does the AN000297A01 fit?

It fits the Motorola APX NEXT and APX NEXT XE.

Will the AN000297A01 work on an APX 6000 or APX 8000?

No. Earlier APX portables need an antenna with GPS hardware inside. APX NEXT antennas do not have it, so they are not interchangeable.

Does the AN000297A01 have GPS?

No. The APX NEXT has its GPS receiver built into the radio, so the antenna does not need one.

How long is the AN000297A01?

It is 7.9 inches (20 cm) long.

Is there a shorter antenna for the APX NEXT?

Yes, if you use a single band. The AN000296A01 stubby is 2.6 inches for 700/800 MHz, and the AN000393A01 whipis 5.5 inches for UHF.

Is this a genuine Motorola antenna?

Yes. The AN000297A01 is an original Motorola Solutions part with a 1-year warranty.

Order the Motorola AN000297A01 All-Band Antenna

Keep your APX NEXT or APX NEXT XE covered on VHF, UHF and 700/800 MHz with the genuine Motorola AN000297A01 flexible whip antenna. Order today from Battery Distributors.

Looking for more? Browse our full line of Motorola APX radio batteries, chargers and accessories, or read our guide to Motorola APX radios.
