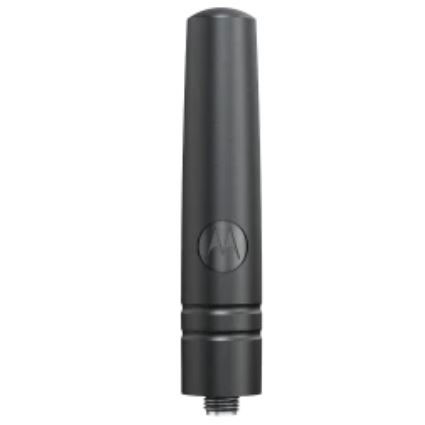

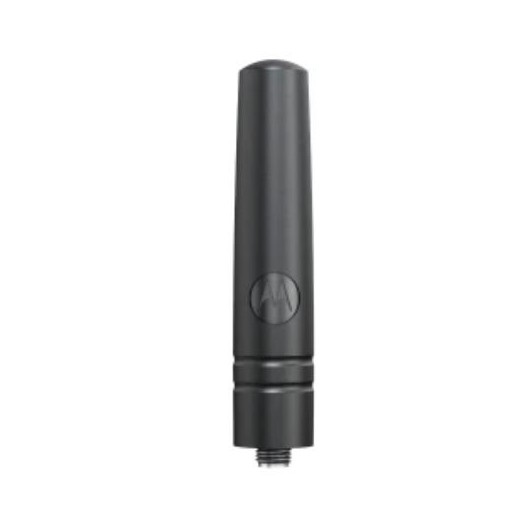

Motorola AN000296A01 700/800 MHz Stubby Antenna for APX NEXT
Part Number |
AN000296A01 |
Motorola AN000296A01 700/800 MHz Stubby Antenna for APX NEXT & APX NEXT XE
The Motorola AN000296A01 is a genuine Motorola Solutions stubby antenna built for the APX NEXT and APX NEXT XE portable radios. It covers the 700/800 MHz band (760–870 MHz) and measures just 2.6 inches, making it the most compact antenna in the APX NEXT line.
Motorola designed this antenna for wearability. Its short profile stays clear of clothing, vests, seat belts and shoulder-mounted gear, so it will not snag while you work. It is a direct OEM replacement for a lost or damaged APX NEXT 700/800 MHz stubby antenna, and a popular upgrade for users who find a full-length whip gets in the way.
Motorola AN000296A01 Key Features
- Genuine Motorola Solutions OEM antenna, part number AN000296A01
- 700/800 MHz coverage, 760–870 MHz
- Stubby design, only 2.6 inches (65 mm) long
- Low profile that will not snag on clothing or equipment
- SMA-female mount for a secure fit on APX NEXT radios
- Lightweight at about 16 grams (0.6 oz)
- Black finish
- 1-year warranty
- Radio sold separately
AN000296A01 Specifications
| Specification | Motorola AN000296A01 |
| Manufacturer | Motorola Solutions |
| Part Number | AN000296A01 |
| Product Type | Portable radio antenna |
| Antenna Style | Stubby |
| Band | 700/800 MHz |
| Frequency Range | 760–870 MHz |
| Length | 2.6 in (65 mm) |
| Weight | 16 g (0.6 oz) |
| Mounting Style | SMA-female |
| Integrated GPS | No (GPS is built into the APX NEXT radio) |
| Color | Black |
| Warranty | 1 year |
What Radios Does the AN000296A01 Fit?
The AN000296A01 is made for the Motorola APX NEXT platform:
- Motorola APX NEXT portable radio: shop all APX NEXT batteries and accessories
- Motorola APX NEXT XE portable radio: shop all APX NEXT XE batteries and accessories
Radios the AN000296A01 Does Not Fit
- APX 6000, APX 7000, APX 8000 and other earlier APX portables. Those radios need an antenna with GPS hardware built in. APX NEXT antennas have none because the GPS receiver is inside the radio, so Motorola states they cannot be used on other APX models.
- APX N30, APX N50 and APX N70. The N-series radios use a different antenna family.
Not sure which antenna your radio takes? Contact Battery Distributors with your radio model and we will confirm the correct part.
AN000296A01 vs. Other APX NEXT Antennas
The AN000296A01 is the right choice when your system is 700/800 MHz only and you want the smallest antenna possible. If you need more bands, choose a whip.
| Antenna | Style | Coverage | Length | Best For |
| AN000296A01 | Stubby | 760–870 MHz | 2.6 in | 700/800 MHz systems, most compact |
| Motorola AN000297A01 | Flexible whip | VHF, UHF, 700/800 MHz | 7.9 in | Multi-band users and interoperability |
| Motorola AN000393A01 | Short whip | UHF 350–520 MHz | 5.5 in | UHF-only systems |
| AN000296A01 | AN000297A01 | |
| Type | Stubby | Whip |
| 700/800 MHz | 760–870 MHz | 760–870 MHz |
| VHF | No | 136–174 MHz |
| UHF | No | 380–520 MHz |
| Length | 2.6" | 7.9" |
| Best for | Compact 700/800 MHz operation | Multi-band operation |
Choose the AN000296A01 if:
Your agency operates only on a 700/800 MHz system and you want a short antenna that stays out of the way.
Choose the AN000297A01 if:
Your APX NEXT operates on more than one band, or you work mutual aid across VHF, UHF and 700/800 systems. See the Motorola AN000297A01 All-Band Whip Antenna.
Choose the AN000393A01 if:
You operate only on UHF. See the Motorola AN000393A01 UHF Whip Antenna.
Stubby or Whip: Which Is Right for You?
A stubby antenna is easier to wear. It suits users who carry the radio on a belt or chest rig, work in and out of vehicles, or find a long antenna catching on gear. A shorter antenna generally gives up some range compared with a full-length whip, so users at the edge of system coverage may prefer the AN000297A01 all-band whip. Inside solid 700/800 MHz coverage, the stubby is the more comfortable choice.
More Accessories for the APX NEXT and APX NEXT XE
Batteries
- Motorola NNTN9216 IMPRES 2 Battery, 4400mAh
- Motorola NNTN9217 IMPRES 2 UL Division 2 Battery, 4400mAh
Chargers
Speaker Microphones
- Motorola PMMN4135 XVP850 Remote Speaker Mic with channel knob
- Motorola PMMN4136 XVP830 Remote Speaker Mic
Carry Accessories
- Motorola PMLN7947 Plastic Carry Holster
- Motorola PMLN7948 Hybrid Leather Holster
- Motorola PMLN7965 3-Inch Belt Clip
- Motorola NTN8266 2.5-Inch Belt Clip
Frequently Asked Questions
What is the Motorola AN000296A01?
It is Motorola's 2.6-inch stubby antenna for the APX NEXT and APX NEXT XE. It covers the 700/800 MHz band from 760 to 870 MHz.
What radios does the AN000296A01 fit?
It fits the Motorola APX NEXT and APX NEXT XE.
Will the AN000296A01 work on an APX 6000 or APX 8000?
No. Earlier APX portables need an antenna with GPS hardware inside. APX NEXT antennas do not have it, so they are not interchangeable.
Does the AN000296A01 work on VHF or UHF?
No. It is a single-band 700/800 MHz antenna. For VHF, UHF and 700/800 MHz in one antenna, use the Motorola AN000297A01.
Does the AN000296A01 have GPS?
No. The APX NEXT has its GPS receiver built into the radio, so the antenna does not need one.
How long is the AN000296A01?
It is 2.6 inches (65 mm) long.
Is this a genuine Motorola antenna?
Yes. The AN000296A01 is an original Motorola Solutions part with a 1-year warranty.
Order the Motorola AN000296A01 Stubby Antenna
Give your APX NEXT or APX NEXT XE a compact, snag-free 700/800 MHz antenna with the genuine Motorola AN000296A01. Order today from Battery Distributors.
Looking for more? Browse our full line of Motorola APX radio batteries, chargers and accessories, or read our guide to Motorola APX radios.
