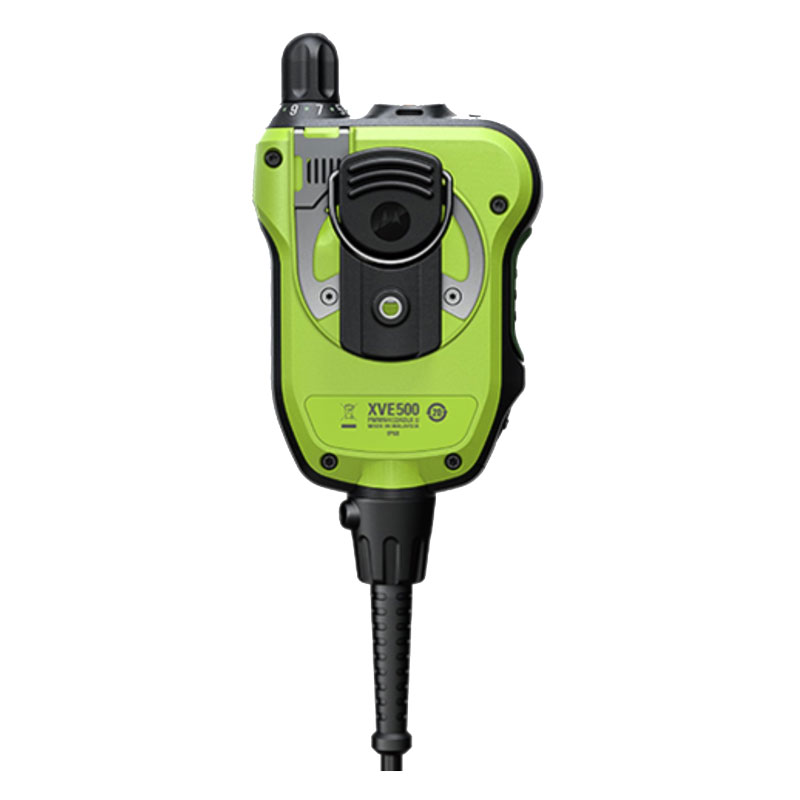

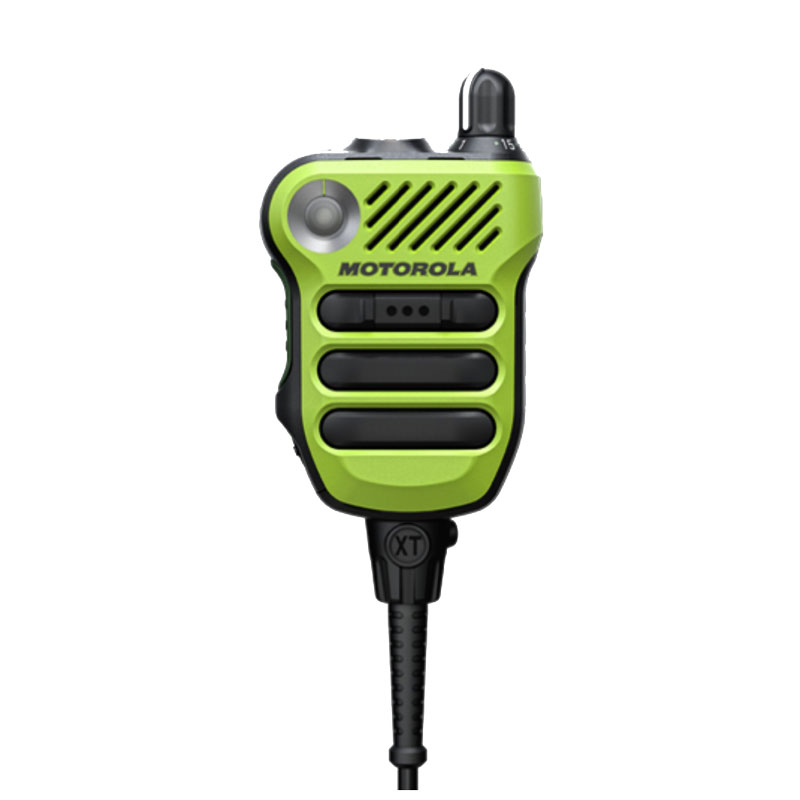

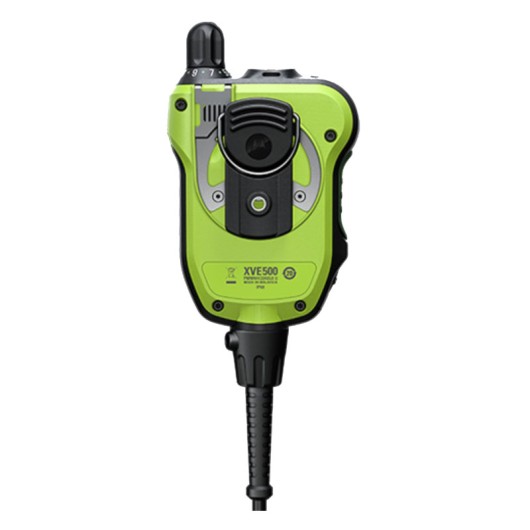

PMMN4154 XVE500 Extreme Temperature Remote Speaker Mic GREEN: PMMN4154A, PMMN4154BT

The MotorolaPMMN4154 is an OEM XVE500 extreme-temperature remote speaker microphone designed for compatible Motorola APX public-safety radios. Its high-visibility green housing, four-microphone audio system, large push-to-talk button, channel knob, emergency control and heat-resistant cable make it an excellent choice for firefighters and other users working in severe environments.

The PMMN4154 uses automatic audio leveling, adaptive noise suppression and enhanced wind and water shielding to deliver loud, intelligible communications in high-noise conditions. It is IP68 rated and can withstand brief heat exposure up to 500°F—or 260°C—for as long as five minutes.

Motorola PMMN4154 Quick Specifications

What Radios Does the PMMN4154 Work With?

The PMMN4154 is compatible with approved configurations of the following Motorola radios:

• Motorola APX NEXT
• Motorola APX NEXT XE
• Motorola APX 8000
• Motorola APX 8000XE
• Motorola APX 8000H
• Motorola APX 8000HXE
• Motorola APX 6000 BN models
• Motorola APX 6000XE BN models

Compatibility depends on radio hardware, firmware and HAZLOC configuration.

Important APX Hardware Requirement

For compatible traditional APX radios, check the complete radio model or serial information.

• Compatible radios generally use the newer BN hardware designation.
• Older AN-designated models are not compatible with this microphone.
• APX 6000 and APX 6000XE radios must be compatible BN configurations.

Do not order the PMMN4154 based only on the radio family name. Confirm the full radio model number and firmware version first.

Browse the Motorola APX product category or read the complete Motorola APX radio guide for additional information.

Minimum Radio Firmware Requirements

The following minimum firmware levels are generally required:

Using older firmware may prevent certain controls or audio features from operating correctly. Confirm firmware before purchasing the microphone for an existing fleet.

Firmware and accessory requirements can change as Motorola releases software updates. Agencies should verify current requirements before deploying the PMMN4154 across multiple radios.

Four-Microphone Intelligent Audio System

The PMMN4154 uses four high-dynamic-range microphones positioned to capture the user’s voice from different directions.

Its intelligent audio processing can automatically adjust:

• Microphone gain
• Noise suppression
• Speaker equalization
• Wind filtering
• Audio level

This helps the microphone deliver clearer communications when the user is wearing protective equipment, facing away from the microphone or operating around sirens, engines, pumps, alarms and other loud machinery.

Extreme-Temperature Performance

The XVE500 housing and cable are engineered for brief exposure to temperatures as high as 500°F or 260°C for up to five minutes.

This makes the PMMN4154 particularly useful for:

• Structural firefighting
• Fireground command
• Rescue operations
• Oil and gas facilities
• Refineries
• Chemical plants
• Industrial emergency response
• High-temperature maintenance operations

This rating does not mean the microphone can be operated continuously at 500°F. It describes resistance to brief extreme-heat exposure under specified conditions.

High-Visibility Green Housing

The bright green housing helps users and team members locate the microphone quickly in smoke, darkness and visually cluttered environments.

The microphone also includes:

• Large front push-to-talk button
• Illuminated emergency button
• Shielded emergency control to reduce accidental activation
• Strobe or visibility light
• Large channel knob
• Volume toggle
• Dedicated ViQi button
• D-ring for strap attachment
• 360-degree clothing clip

These controls are designed for easier use with gloves and protective clothing.

IP68 Dust and Water Protection

The PMMN4154 is IP68 rated for protection against dust and water when properly connected to a compatible radio.

Its rugged construction includes enhanced:

• Water shielding
• Wind protection
• Dust resistance
• Impact resistance
• Cable protection

The IP68 rating does not eliminate the need to inspect connectors, seals and the cable regularly. Damage or improper connection can reduce environmental protection.

Channel and Volume Controls

Unlike the PMMN4152 version of the XVE500, the PMMN4154 includes a channel-selection knob.

This allows compatible radio users to change channels directly from the speaker microphone without reaching for the radio.

The PMMN4154 also provides volume control, which is useful when the radio is:

• Worn under turnout gear
• Secured in a holster
• Attached to a radio strap
• Positioned where its controls are difficult to reach

Control functionality depends on the connected radio and firmware.

Dedicated ViQi Button

The built-in ViQi button gives compatible APX users direct access to supported Motorola voice-command and information features.

Available ViQi functions depend on:

• Radio model
• Radio firmware
• Agency system configuration
• Purchased software features
• Network availability

The presence of a ViQi button does not automatically activate ViQi services on the radio.

3.5mm Receive-Only Accessory Port

The PMMN4154 includes a 3.5mm receive-only audio port for a compatible listen-only earpiece.

A listen-only earpiece can help provide more discreet or private incoming audio while the microphone continues to handle push-to-talk and outgoing voice transmission.

The PMLN4620 D-style receive-only earpiece is an option to consider. Confirm plug and port compatibility before ordering.

HAZLOC and Intrinsic-Safety Compatibility

The PMMN4154 is available for approved hazardous-location radio systems, but HAZLOC approval applies to the complete certified combination—not to the microphone by itself.

The required approval depends on:

• Exact radio model
• Radio hardware revision
• Battery
• Microphone revision
• Firmware
• Hazardous-location classification

The APX 8000HXE can support Division 1-rated configurations when used with accessories specifically listed for that approved radio system. Other compatible APX configurations may carry different Division 1 or Division 2 approvals.

Always verify the complete Motorola UL listing before using the PMMN4154 in a hazardous atmosphere. Never assume that attaching a HAZLOC-capable microphone makes a non-approved radio system intrinsically safe.

PMMN4154 vs PMMN4152

The PMMN4154 and PMMN4152 are closely related XVE500 microphones.

Choose the PMMN4154 when channel selection from the microphone is important.

Choose the Motorola PMMN4152 when the same general XVE500 ruggedness is required without a channel knob.

PMMN4154 vs PMMN4135

The PMMN4135 is an XVP850 remote speaker microphone with a channel knob. It provides strong audio and radio control but is not the primary extreme-temperature model.

Choose the PMMN4154 for fireground use and extreme-temperature exposure.

Choose the Motorola PMMN4135 for general public-safety communications when the extreme-temperature construction is not required.

PMMN4154 vs PMMN4136

The PMMN4136 is an XVP830 microphone without a channel knob.

The Motorola PMMN4136 may be a more economical choice when extreme heat resistance and microphone-mounted channel control are unnecessary.

Available PMMN4154 Color Options

The PMMN4154 is commonly available in two housing colors:

• PMMN4154A/B — high-visibility green
• PMMN4154ABLK/BBLK — black

Both versions include the channel knob and XVE500 feature set. The green model is normally preferred for fire and high-visibility applications, while the black version provides a more traditional public-safety appearance.

Verify the exact color suffix before ordering.

Compatible and Alternative Speaker Microphones

Read the Motorola APX remote speaker microphone guide to compare additional APX microphone options.

Other Compatible APX Products

Depending on the radio model, compatible equipment may include:

• Motorola PMLN4620 receive-only earpiece
• Motorola NNTN9216 APX NEXT battery
• Motorola NNTN9217 safety-rated APX NEXT battery
• Motorola AN000296A01 APX NEXT antenna
• Motorola PMPN4604 APX NEXT desktop charger
• Motorola PMPN4639 APX NEXT vehicle charger

Compatibility varies by radio platform. Confirm the exact model before ordering related accessories.

Frequently Asked Questions

Is PMMN4154 the same as PMMN4154A or PMMN4154B?

PMMN4154 is the base part number. PMMN4154A and PMMN4154B identify Motorola product revisions. Confirm the revision supplied when ordering.

What is the Motorola PMMN4154?

It is a high-visibility green XVE500 extreme-temperature remote speaker microphone with a channel knob for compatible Motorola APX radios.

Does the PMMN4154 work with APX NEXT?

Yes, with supported APX NEXT firmware. R04.70.00 or later is generally required.

Does it work with APX NEXT XE?

Yes. It is designed for compatible APX NEXT XE public-safety and firefighter configurations.

Does it work with APX NEXT XN?

Do not assume compatibility. APX NEXT XN commonly uses the PMMN4138 XVN500 microphone. Confirm the exact radio configuration before ordering.

Does it work with APX 8000 radios?

Yes. It supports compatible APX 8000, APX 8000XE, APX 8000H and APX 8000HXE radios.

Does it work with the APX 6000?

It supports approved newer BN-designated APX 6000 and APX 6000XE configurations with the required firmware. Older AN-designated radios are not compatible.

What firmware is required?

Compatible traditional APX radios generally require R30.00.00 or later. APX NEXT radios generally require R04.70.00 or later.

Is the PMMN4154 waterproof?

It carries an IP68 dust and water rating when properly connected to a compatible radio.

Is it heat resistant?

Yes. The microphone housing and cable are rated to withstand heat exposure up to 500°F or 260°C for as long as five minutes under specified conditions.

Does it include a channel knob?

Yes. The channel knob is one of the main differences between the PMMN4154 and PMMN4152.

Does it have volume control?

Yes. It includes microphone-mounted volume control for supported radios.

Does it have a ViQi button?

Yes. A dedicated ViQi button provides access to supported voice-command features on properly configured radios.

Does it include an emergency button?

Yes. It has a large illuminated emergency button designed for easier use with gloves.

Does it have a 3.5mm earpiece port?

Yes. It includes a 3.5mm receive-only port for a compatible listen-only earpiece.

Is the PMMN4154 intrinsically safe?

It can be part of an approved HAZLOC system. The applicable rating depends on the exact radio, battery, microphone revision and complete Motorola UL listing.

What is the closest alternative without a channel knob?

The PMMN4152 is the closest XVE500 alternative without channel control.

What is the less expensive alternative?

The PMMN4135 or PMMN4136 may be appropriate when IP68 protection and advanced audio are required but extreme-temperature resistance is unnecessary.

Why Buy the Motorola PMMN4154?

The Motorola PMMN4154 combines extreme-temperature resistance, four-microphone intelligent audio, IP68 protection, high-visibility construction and direct radio controls in one mission-critical speaker microphone. It is an excellent choice for firefighters and public-safety professionals who require dependable communications in severe heat, water, wind and noise.

Before ordering, confirm:

• Exact radio model
• AN or BN hardware designation
• Current radio firmware
• Required HAZLOC classification
• Green or black housing preference
• Need for microphone-mounted channel control
• Listen-only earpiece requirements

Contact Battery Distributors for assistance matching the PMMN4154 with the correct Motorola APX radio, battery, charger, antenna and audio accessories.
