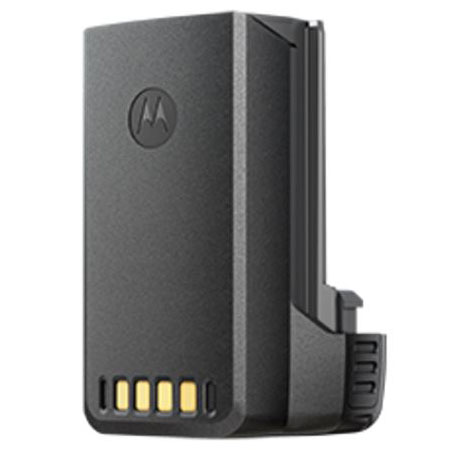

Motorola NNTN9217B IMPRES 2 UL Division 2 Battery – 4400mAh for APX NEXT

Motorola’s current NNTN9217B is a 4,400mAh, 31.7Wh IMPRES 2 lithium-ion battery with IP68 protection and UL hazardous-location approval for compatible APX NEXT systems. It offers approximately 13.8 hours of published runtime.

The Motorola NNTN9217B is a genuine Motorola IMPRES 2 lithium-ion battery designed for compatible Motorola APX NEXT and APX NEXT XE portable radios. It combines a 4400mAh capacity, approximately 31.7 watt-hours of stored energy, IP68 environmental protection and UL hazardous-location approval for qualified APX NEXT radio configurations.

The NNTN9217 is designed for public safety, fire and rescue, utilities, industrial operations and other organizations that require a rugged battery approved for use with a properly configured radio system in specified Class I, Class II and Class III Division 2 hazardous locations.

Motorola describes the NNTN9217 as a standard-capacity APX NEXT battery. Its 4400mAh capacity provides approximately 13.8 hours of operating time under standard test conditions while maintaining a smaller profile than the high-capacity NNTN9090 or PMNN4896 battery.

The NNTN9217 uses Motorola IMPRES 2 battery-management technology. When maintained with compatible IMPRES 2 chargers, it supports optimized charging, battery-condition information, more accurate fuel-gauge data and automated battery-maintenance decisions.

Quick Specifications

What Radios Does the NNTN9217 Fit?

The Motorola NNTN9217 is designed for compatible configurations of:

• Motorola APX NEXT
• Motorola APX NEXT XE
• Motorola APX NEXT XN, when listed in the applicable approval documentation

The battery is particularly important for APX NEXT configurations requiring an approved UL Division 2 battery. Always verify the radio model, flash or hardware configuration and current hazardous-location approval documentation before use.

Browse Motorola APX NEXT batteries, chargers and accessories to compare compatible products for the APX NEXT platform.

NNTN9217 Hazardous-Location Approval

The NNTN9217 is approved for use in specified hazardous-location configurations when paired with an approved Motorola APX NEXT radio and compatible accessories.

Motorola documentation lists applicable approval for:

• Class I, Division 2, Groups A, B, C and D
• Class II, Division 2, Groups F and G
• Class III hazardous locations

This type of approval is commonly described as UL Division 2 or non-incendive approval. Product listings may also use terms such as HAZLOC or intrinsically safe; however, the complete approval documentation should determine whether the radio system is suitable for a particular workplace.

The battery’s approval does not independently make a radio system safe for hazardous-location use. The radio, battery, antenna, speaker microphone, audio accessories and other attached components must be included in the applicable Motorola and UL approval documentation.

Never substitute the non-HAZLOC NNTN9216 when the NNTN9217 or another safety-rated battery is required.

NNTN9217 Runtime

The Motorola NNTN9217 provides approximately 13.8 hours of estimated operating time under standard test conditions.

Actual battery runtime depends on:

• Frequency and duration of transmissions
• LTE, Wi-Fi and broadband-data activity
• Radio transmit-power settings
• GPS and Bluetooth use
• Touchscreen and display activity
• Video and application use
• Speaker volume
• Signal strength and system coverage
• Connected audio accessories
• Ambient temperature
• Battery age and charging history

The APX NEXT combines P25 voice communications with broadband connectivity, applications and a touchscreen interface. These features can create more variation in battery consumption than a traditional voice-only portable radio.

Heavy transmitting, frequent display use, continuous broadband activity and operation in weak-coverage areas can reduce runtime. Users working longer shifts may require a spare NNTN9217 or a compatible high-capacity safety-rated battery such as the NNTN9090 or PMNN4896.

Compatible Chargers

The NNTN9217 must be charged with equipment designed for the Motorola APX NEXT battery platform.

Compatible charging options include:

• Motorola NNTN9199A: IMPRES 2 single-unit desktop fast charger
• Motorola NNTN9115A: Six-unit IMPRES fleet charger
• Motorola PMPN4591A: Six-unit IMPRES charger
• Motorola PMPN4604A: Single-unit IMPRES desktop charger
• Motorola PMPN4639A/B: IMPRES 2 12V DC vehicle charger
• Motorola NNTN9212A: Replacement single-unit charger adapter cup for applicable charging configurations

View available Motorola APX NEXT chargers to compare desktop, multi-unit and vehicle-charging options.

Motorola NNTN9199A Single-Unit Charger

The NNTN9199A is an IMPRES 2 fast desktop charger designed for individual APX NEXT radios and batteries. It is suitable for assigned workstations, supervisors and users who maintain their own charging location.

Motorola NNTN9115A Multi-Unit Charger

The NNTN9115A provides centralized charging for multiple compatible APX NEXT radios or batteries. It is well suited to police departments, fire stations, emergency operations centers and other organizations managing radio fleets.

Motorola PMPN4639A/B Vehicle Charger

The PMPN4639 provides 12V DC IMPRES 2 vehicle charging for compatible APX NEXT equipment. It is useful for personnel who spend extended periods away from a station or equipment room.

A battery fitting inside a charger pocket does not automatically confirm correct charging support. Verify the charger model, adapter cup, software, power supply and IMPRES 2 compatibility before use.

Previous and Superseded Motorola Part Numbers

The NNTN9217 battery family includes:

• NNTN9217: Base part number
• NNTN9217A: Earlier Motorola revision
• NNTN9217B: Current revision commonly supplied

The NNTN9217B is the current replacement for the earlier NNTN9217A. Both are 4400mAh IMPRES 2 batteries with UL hazardous-location approval and IP68 protection.

The current NNTN9217B offers an expanded low-temperature discharge specification of approximately -30°C to +60°C. Earlier NNTN9217A documentation generally specified approximately -20°C to +60°C.

The NNTN9088 is an earlier, lower-capacity UL-approved APX NEXT battery that may fit many of the same radios. It should be treated as a compatible alternative rather than the exact previous part number for the NNTN9217.

NNTN9217 vs Other APX NEXT Batteries

Only use a battery included in the radio system’s applicable approval documentation when operating in a hazardous location.

NNTN9217 vs NNTN9216

The NNTN9217 and NNTN9216 offer the same rated capacity and similar runtime. Their most important difference is the NNTN9217’s UL hazardous-location approval.

Choose the NNTN9217 when the complete radio system must meet the applicable Division 2 approval. Choose the NNTN9216 when hazardous-location certification is not required.

Using the NNTN9217 on a radio or with accessories that are not included in the approval documentation does not create an approved hazardous-location system.

NNTN9217 vs NNTN9088

The NNTN9217 provides approximately 550mAh more capacity than the NNTN9088. This makes it a strong upgrade for users who need additional runtime while maintaining a standard-size UL-approved battery.

NNTN9217 vs NNTN9090

Choose the NNTN9217 when minimizing battery size and radio weight is important. Choose the NNTN9090 when maximum runtime is the priority and the larger battery housing is acceptable.

Verify that the radio’s carrying case or holster is designed for the selected battery. A case sized for the standard NNTN9217 may not fit the larger NNTN9090.

NNTN9217 vs PMNN4896

The PMNN4896 offers approximately 26% more capacity than the NNTN9217. It may be preferable for extended shifts, emergency deployments and users who cannot safely exchange batteries during operation.

The NNTN9217 remains the better choice when standard size, lower weight and balanced full-shift performance are more important than maximum capacity.

Why Choose the Motorola NNTN9217?

• Genuine Motorola APX NEXT battery
• 4400mAh rated capacity
• Approximately 31.7 watt-hours
• Approximately 13.8 hours of published operating time
• Motorola IMPRES 2 technology
• IP68-rated environmental protection
• UL approval for applicable Division 2 configurations
• Standard-size APX NEXT battery housing
• 24-month Motorola capacity warranty
• Current NNTN9217B revision replaces NNTN9217A
• Extended low-temperature capability on the current B revision
• Compatible with APX NEXT desktop, multi-unit and vehicle chargers

Frequently Asked Questions

Is NNTN9217B the same as NNTN9217?

Yes. NNTN9217 is the base part number, while NNTN9217B identifies the current Motorola factory revision.

What happened to NNTN9217A?

NNTN9217A is an earlier revision. The NNTN9217B is the current replacement and provides the same 4400mAh capacity with updated specifications.

What is the capacity of the NNTN9217?

The NNTN9217 has a rated capacity of 4400mAh and a published energy rating of approximately 31.7 watt-hours.

What is the voltage of the NNTN9217?

The NNTN9217 has a nominal voltage of approximately 7.2 volts. Refer to the battery label and current Motorola documentation when voltage must be confirmed for transportation or technical records.

How long does the NNTN9217 last per charge?

Motorola publishes approximately 13.8 hours of operating time under standard test conditions. Actual runtime depends on transmitting, broadband activity, touchscreen use, enabled features, signal strength, temperature and battery age.

Does the NNTN9217 fit the APX NEXT?

Yes. The NNTN9217 is designed for approved Motorola APX NEXT configurations.

Does the NNTN9217 fit the APX NEXT XE?

Yes. Motorola lists the NNTN9217 for compatible APX NEXT XE radios.

Does the NNTN9217 fit the APX NEXT XN?

The NNTN9217 is included in applicable hazardous-location approval documentation for certain APX NEXT configurations. Confirm the exact radio model and current Motorola approval documentation before use.

Is the NNTN9217 intrinsically safe?

The NNTN9217 is UL-approved for specified Division 2 hazardous locations when used with an approved radio and approved accessories. The exact UL classification should be used instead of assuming the battery is approved for every intrinsically safe or hazardous environment.

What is the difference between NNTN9217 and NNTN9216?

Both batteries provide 4400mAh capacity, IMPRES 2 technology and IP68 protection. The NNTN9217 carries UL hazardous-location approval, while the NNTN9216 is the non-HAZLOC version.

Is the NNTN9217 waterproof?

The NNTN9217 carries an IP68 rating. Motorola states that the battery can withstand immersion in up to two meters of water for as long as four hours under specified test conditions.

Damage, worn seals or improper attachment can reduce water protection. The UL investigation and IP rating are separate evaluations.

Does the NNTN9217 include a belt clip?

No. A compatible belt clip is generally purchased separately. Verify package contents before ordering.

Which carrying case fits the NNTN9217?

The Motorola PMLN7948A case is designed for APX NEXT radios using standard-size batteries such as the NNTN9216 and NNTN9217.

Can the NNTN9217 use an APX 6000 charger?

No. The APX NEXT battery platform requires dedicated chargers such as the NNTN9199, NNTN9115, PMPN4591, PMPN4604 or PMPN4639.

Can a non-approved accessory be used in a hazardous location?

No. When hazardous-location approval is required, the radio, battery, antenna and attached audio accessories must be included in the applicable approval documentation. Substituting an unapproved component can invalidate the system’s approval.

When should the NNTN9217 be replaced?

Replace the battery if it is swollen, cracked, leaking, unable to lock securely onto the radio, repeatedly produces charger errors or no longer supports the required shift.

Damaged lithium-ion batteries should be removed from service immediately and handled according to applicable workplace and battery-recycling requirements.

Related APX NEXT Batteries

• Motorola NNTN9216: 4400mAh non-HAZLOC IMPRES 2 battery for standard APX NEXT operation.
• Motorola NNTN9088: Approximately 3850mAh UL-approved IMPRES 2 battery.
• Motorola NNTN9090: High-capacity UL-approved IMPRES 2 battery for extended runtime.
• Motorola PMNN4896: Approximately 5550mAh high-capacity UL-approved battery.
• Motorola NNTN9087: Approximately 3850mAh non-HAZLOC IMPRES 2 battery.
• Motorola NNTN9089: High-capacity non-HAZLOC IMPRES 2 battery.
• Motorola PMNN4812: 3400mAh IMPRES 2 UL Division 2 battery for compatible APX NEXT XN configurations.

Browse Motorola APX NEXT batteries and accessories to compare available options.

Related Chargers and Compatible Products

• Motorola APX NEXT chargers – Compare desktop, multi-unit and vehicle chargers.
• Motorola NNTN9199A – IMPRES 2 single-unit desktop fast charger.
• Motorola NNTN9115A – Six-unit IMPRES fleet charger.
• Motorola PMPN4591A – Six-unit IMPRES charger.
• Motorola PMPN4604A – Single-unit IMPRES desktop charger.
• Motorola PMPN4639A/B – IMPRES 2 12V DC vehicle charger.
• Motorola NNTN9212A – Replacement single-unit adapter cup.
• Motorola PMLN7948A – Carrying case for APX NEXT radios with standard NNTN9217 batteries.
• Motorola PMMN4154B – XVE500 remote speaker microphone for applicable approved configurations.
• Motorola PMLN6127A – Two-wire earpiece with microphone and push-to-talk for compatible APX NEXT configurations.

When hazardous-location approval is required, verify that every attached accessory is approved for the complete radio system.

For assistance selecting the correct APX NEXT battery, provide the radio’s complete model, existing battery number, charger model, required runtime and hazardous-location classification. BatteryDistributors.com can help compare standard-capacity and high-capacity Motorola APX NEXT battery options.
