Motorola PMMN4061B IMPRES Public Safety Microphone – 30-Inch Cord

Motorola PMMN4061B IMPRES Public Safety Microphone – 30-Inch Cable

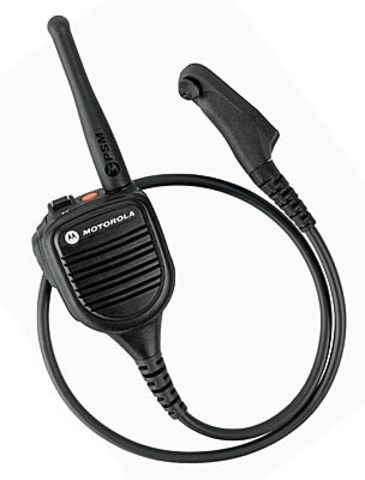

The Motorola PMMN4061B Public Safety Microphone is a rugged IMPRES remote speaker microphone for compatible Motorola APX portable radios. It combines a 30-inch straight cable, Windporting technology, loud speaker audio, an emergency button, volume control, a 3.5mm earpiece jack, and a public-safety microphone antenna connection.

Important: The PMMN4061 has a 30-inch cable, not a 24-inch cable. The otherwise similar PMMN4060 uses a 24-inch cable.

The longer PMMN4061 cable is ideal when the radio is carried on a duty belt, beneath body armor, or under protective clothing and the microphone is mounted near the shoulder.

Compatible Motorola Radios

The PMMN4061B is compatible with supported 700/800 MHz configurations of:

• Motorola APX 3000
• Motorola APX 6000
• Motorola APX 7000
• Motorola APX 8000
• Motorola APX 8000XE
• SRX 2200

Compatibility depends on the radio’s model, frequency band, and configuration. Motorola identifies this microphone primarily for 700/800 MHz radios. VHF operation is not supported.

Features and Benefits

30-Inch Straight Cable

The 30-inch cable provides additional routing length between a belt-mounted radio and shoulder-mounted microphone. This makes the PMMN4061 particularly useful with body armor, heavy uniforms, jackets, and other protective equipment.

Public-Safety Microphone Antenna Connection

The PMMN4061 requires a compatible PSM antenna, which is generally sold separately. Moving the antenna from the belt-mounted radio to the shoulder microphone can place it in a higher, less obstructed position.

The selected antenna must match the radio’s frequency band. Using an incorrect antenna can reduce RF performance.

IMPRES Audio Technology

Motorola IMPRES technology allows the compatible radio to recognize the microphone and apply appropriate audio settings. This helps provide consistent, intelligible communications in demanding public-safety environments.

Windporting

Windporting technology helps reduce wind noise and prevents water from blocking the microphone opening. It is useful for traffic control, motorcycle patrol, outdoor security, utility work, and emergency response.

Emergency Button and Volume Control

The programmable orange emergency button provides quick access to supported emergency functions. Integrated volume control allows users to adjust received audio without reaching for the radio.

3.5mm Audio Jack

A 3.5mm non-threaded jack accepts a compatible receive-only earpiece for more discreet incoming communications. The earpiece is sold separately.

IP55 Protection

The PMMN4061B carries an IP55 rating, providing protection against dust and water jets under defined test conditions. It is weather resistant but not designed for complete water submersion.

Specifications

Best Uses

The Motorola PMMN4061B is best suited for:

• Police officers wearing duty belts or body armor
• Highway patrol and traffic-enforcement units
• Emergency-response personnel
• Security and critical-infrastructure teams
• Utility and public-works crews
• Users who carry their radio beneath a jacket
• Applications requiring additional cable-routing length

PMMN4061 vs. PMMN4060

The principal difference is cable length. Choose the PMMN4061 when six additional inches will make routing around body armor or protective clothing easier. Choose the PMMN4060 when a 24-inch cable provides sufficient reach and less excess cable is preferred.

Frequently Asked Questions

Does the PMMN4061 have a 24-inch cable?

No. The PMMN4061 has a 30-inch cable. For the 24-inch version, choose the PMMN4060.

Does it include an antenna?

A compatible public-safety microphone antenna is required and is normally sold separately. Verify the contents of the individual listing.

Can it be used with a VHF radio?

No. Motorola specifies that VHF is not supported. Confirm the radio band and correct PSM antenna before purchasing.

Is it waterproof?

The PMMN4061B is IP55-rated for resistance to dust and water jets. It is not approved for complete submersion.

Motorola PMMN4061B, PMMN4061 PSM: The PMMN4061B Public Safety Mic is a Motorola Original

The PMMN4061B Speaker Mic Comes with IMPRES Audio, Windporting, 3.5mm Audio Jack, 30 Inch Straight Cord, Emergency Button, Volume Control and is INTRINSICALLY SAFE. with the following radio models:  APX 8000, APX 7000, APX 6000, SRX 2200 only. Intrinsic-safety eligibility depends on the exact PMMN4061 revision and its approved radio configuration. Verify the product label and applicable Motorola certification before use in a hazardous location.
12 Month Warranty

See below for available Listen Only Earpiece and Replacement Antenna

Police and other emergency services professionals will appreciate the enhanced coverage and exceptional reliability of these public safety microphones. The PSM allows users to talk and listen without removing the radio from the belt, case, or charger

Available with:

30 inch cable - PMMN4061

24 inch cable - PMMN4060

18 inch cable - PMMN4059

Antenna SOLD Separately (Part # PMAF4002A 700/800MHZ ANTENNA)
