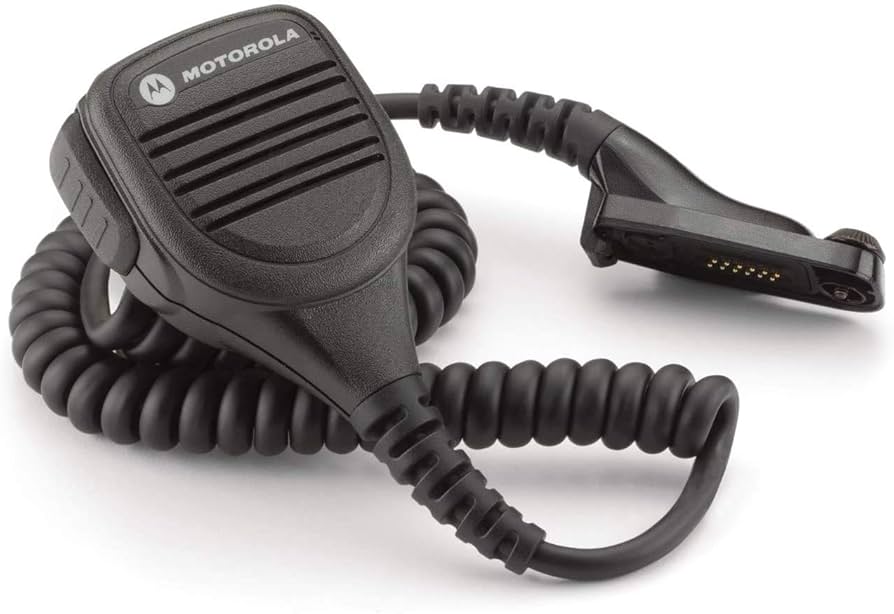

Original Motorola PMMN4025 Speaker Mic: PMMN4025A

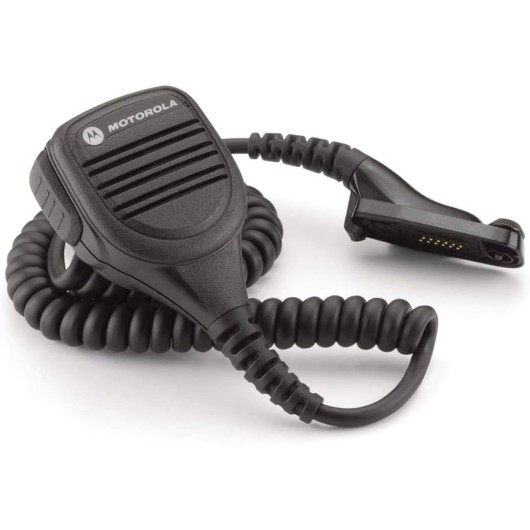

Motorola PMMN4025A IMPRES Remote Speaker Microphone

The Motorola PMMN4025A IMPRES Remote Speaker Microphone provides clear shoulder-mounted audio and convenient controls for compatible Motorola MOTOTRBO XPR portable radios. This genuine Motorola speaker microphone combines IMPRES audio, a programmable orange emergency button, a 3.5mm earpiece jack, push-to-talk control and a rotating clothing clip in a durable professional design.

With the PMMN4025A connected, users can transmit, hear incoming calls and activate supported emergency functions without removing the radio from a belt, protective case or equipment harness. It is an excellent choice for security, manufacturing, construction, transportation, education, hospitality, utilities and other organizations that rely on frequent two-way radio communication.

This microphone may also be identified as PMMN4025, PMMN4025A or PMMN4025AL, depending on its production revision. Confirm the current Motorola revision supplied when ordering.

Motorola PMMN4025A Features and Benefits

Motorola IMPRES Audio

IMPRES technology allows the PMMN4025A and a compatible MOTOTRBO radio to communicate electronically. The radio can recognize the connected accessory and apply suitable audio parameters, helping maintain consistent microphone sensitivity and speaker output.

Available IMPRES functions depend on the radio model, firmware and programming.

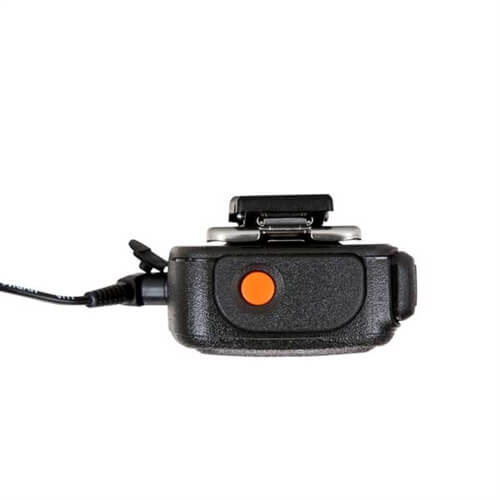

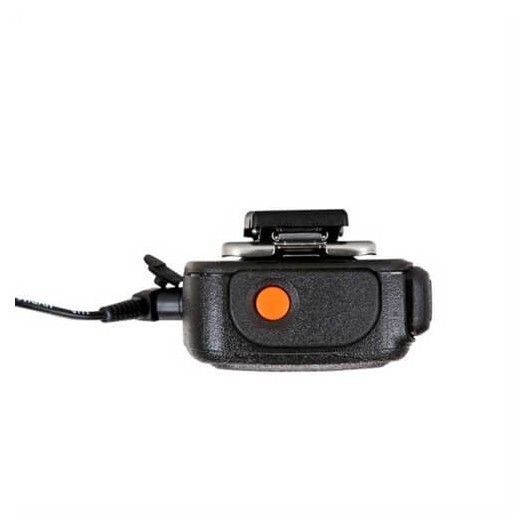

Programmable Emergency Button

The prominent orange emergency button provides fast access to supported emergency features without requiring the user to reach for the portable radio.

The button’s exact function depends on radio programming and system configuration. Test the emergency feature before deploying the microphone in the field.

3.5mm Earpiece Jack

The PMMN4025A includes a 3.5mm audio-accessory jack for a compatible receive-only earpiece. Connecting an earpiece allows incoming radio traffic to be heard more discreetly while the speaker microphone remains available for transmitting.

The earpiece is sold separately. Verify the connector style before ordering.

Convenient Shoulder-Mounted Operation

The microphone places received audio and the push-to-talk button near the user’s shoulder or upper chest. The connected radio can remain secured to a belt, vest or carrying case, allowing quicker communication while keeping both hands available.

Rotating Clothing Clip

A rotating rear clip lets the user position the PMMN4025A on a uniform, jacket, vest or shoulder strap. Proper positioning keeps the speaker, microphone and controls accessible while helping manage the cable.

Professional Motorola Construction

The PMMN4025A is built for frequent commercial and industrial use. It is suitable for routine professional environments but should not be treated as a fully submersible microphone.

Customers requiring greater water protection should compare the PMMN4025A with a compatible Motorola IP57 remote speaker microphone.

Compatible Motorola Radios

The Motorola PMMN4025A is commonly used with supported configurations of:

• Motorola XPR 6100
• Motorola XPR 6300
• Motorola XPR 6350
• Motorola XPR 6380
• Motorola XPR 6500
• Motorola XPR 6550
• Motorola XPR 6580
• Motorola XPR 7350
• Motorola XPR 7350e
• Motorola XPR 7380
• Motorola XPR 7380e
• Motorola XPR 7550
• Motorola XPR 7550e
• Motorola XPR 7580
• Motorola XPR 7580e

Compatibility can vary according to radio revision, connector and regional configuration. Confirm the complete radio model before ordering.

Do not assume compatibility with Motorola APX radios based only on the microphone’s appearance or connector.

Motorola PMMN4025A Specifications

PMMN4025A Compared With Similar Motorola Speaker Mics

Always verify radio and certification compatibility before replacing one Motorola microphone with another.

PMMN4025A vs. PMMN4050A/AL

The PMMN4025A is the better choice when a microphone-mounted emergency button and receive-only earpiece jack are priorities.

The PMMN4050A and PMMN4050AL emphasize noise-canceling microphone technology and a large, glove-friendly housing. They are better suited to personnel working around machinery, engines, construction equipment and other continuous noise.

Choose the PMMN4025A for emergency-button access. Choose the PMMN4050AL when reducing background noise is the primary concern.

PMMN4025A vs. PMMN4040A/AL

The PMMN4040 family is designed for users who require greater protection against water. It is commonly specified with IP57 submersible protection and Windporting technology.

Choose the PMMN4025A for its emergency button and 3.5mm earpiece jack. Choose the PMMN4040 when wet-weather performance and submersibility are more important.

PMMN4025A vs. PMMN4046A

The PMMN4046A is a rugged IMPRES remote speaker microphone commonly specified with an IP57 rating. It is a stronger candidate for utilities, public works and outdoor industrial operations where greater water protection is required.

The PMMN4025A is the more straightforward choice for everyday commercial communication requiring an emergency button and discreet received audio.

PMMN4025A vs. PMMN4067B

The PMMN4067B is a specialized ATEX IMPRES microphone designed for approved explosive-atmosphere radio systems. It offers Windporting, advanced controls and IP64 protection.

The PMMN4067B is not a universal replacement for the PMMN4025A. It should only be selected when the connected radio, battery and microphone form an approved hazardous-location system.

Best Uses for the PMMN4025A

The Motorola PMMN4025A is well suited for:

• Security personnel
• Warehouses and distribution centers
• Manufacturing facilities
• Construction crews
• Transportation and logistics
• Schools and campuses
• Hotels and hospitality teams
• Utilities and public works
• Maintenance departments
• Users requiring an emergency button
• Users connecting a receive-only earpiece
• Personnel carrying radios on a belt or vest

Why Choose the PMMN4025A?

Choose the Motorola PMMN4025A when you need:

• Genuine Motorola construction
• IMPRES audio performance
• Shoulder-mounted push-to-talk operation
• A programmable emergency button
• A 3.5mm earpiece connection
• A rotating clothing clip
• Compatibility with supported XPR radios
• A professional upgrade over a basic non-IMPRES microphone

Important Intrinsic-Safety Notice

Do not assume that every PMMN4025, PMMN4025A or PMMN4025AL revision is approved for hazardous-location use.

Approval may depend on the exact microphone revision and the complete radio, battery and accessory combination. Check the physical certification label and current Motorola documentation before using this microphone around flammable gases, vapors, fuels or combustible dust.

Frequently Asked Questions

What is the Motorola PMMN4025A?

The PMMN4025A is a genuine Motorola IMPRES remote speaker microphone for compatible MOTOTRBO XPR portable radios. It includes a push-to-talk button, programmable emergency button and 3.5mm earpiece jack.

Does the PMMN4025A have an emergency button?

Yes. The microphone includes a programmable orange emergency button. Its operation depends on radio programming and system support.

Can an earpiece be connected?

Yes. The PMMN4025A has a 3.5mm jack for a compatible receive-only earpiece. The earpiece is normally sold separately.

Is the PMMN4025A noise canceling?

Noise cancellation is not the PMMN4025A’s primary feature. Customers working around continuous machinery or engine noise should compare it with the PMMN4050A or PMMN4050AL.

Is the PMMN4025A waterproof?

The PMMN4025A should not be treated as submersible. For greater water protection, compare it with a compatible IP57 microphone such as the PMMN4040 or PMMN4046 family.

Does the PMMN4025A work with the XPR 7550e?

It is commonly listed for compatible XPR 7550e configurations. Confirm the complete radio model and accessory connector before ordering.

Does the PMMN4025A work with Motorola APX radios?

Do not assume APX compatibility without current Motorola documentation. The PMMN4025 family is primarily associated with compatible MOTOTRBO XPR radios.

What is the difference between PMMN4025 and PMMN4025A?

PMMN4025 identifies the base product family, while the additional letter identifies a production revision. PMMN4025AL may be supplied as a later revision. Confirm the version included with the order.

Is the PMMN4025A intrinsically safe?

Intrinsic-safety status must be verified using the exact product label and applicable Motorola documentation. Never rely only on the base part number or an online description.

Is this an original Motorola microphone?

Yes. The PMMN4025A is a genuine Motorola Solutions IMPRES remote speaker microphone for supported MOTOTRBO radios.
