Original Motorola PMLN8120 Listen Only Earpiece: PMLN8120A

Motorola PMLN8120A Extra-Loud Receive-Only Acoustic-Tube Earpiece

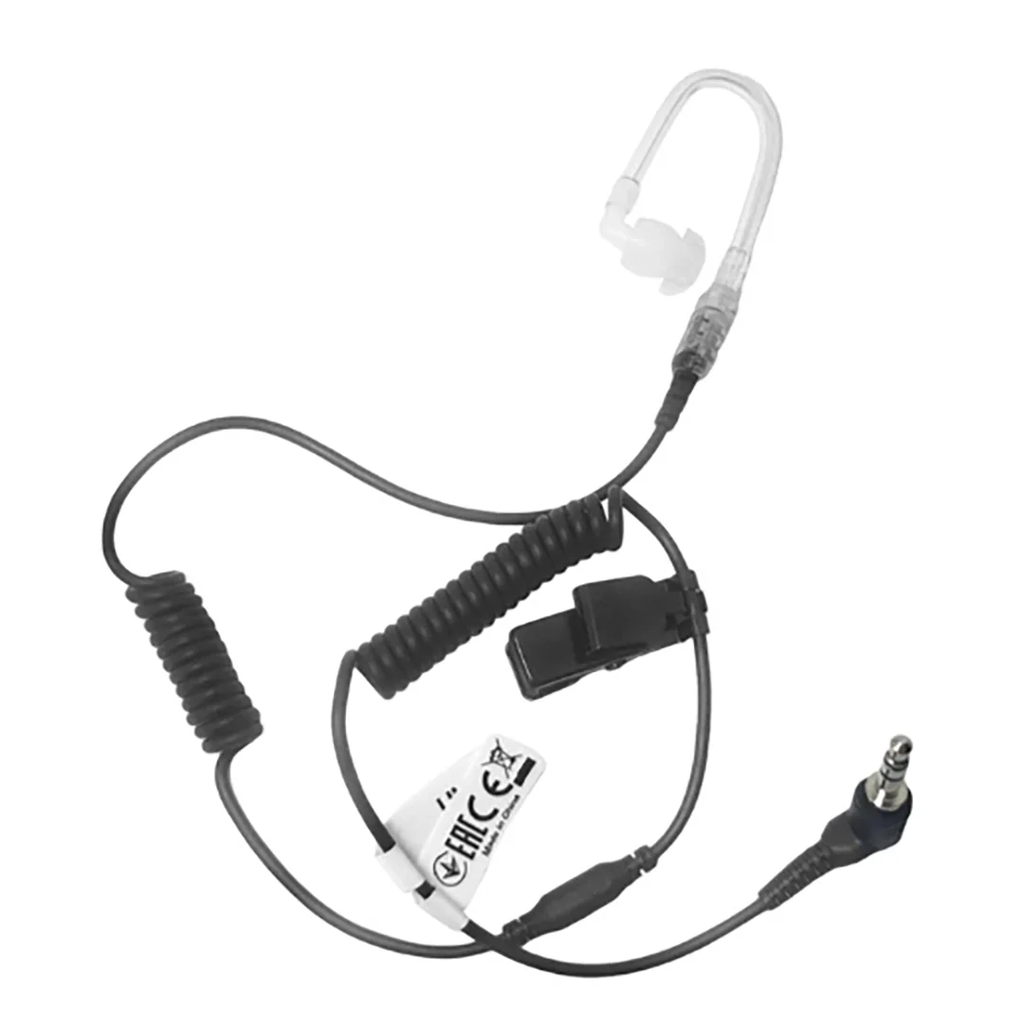

The Motorola PMLN8120A receive-only earpiece provides discreet, clear incoming audio when connected to a compatible Motorola remote speaker microphone. Featuring an extra-loud, wideband-ready speaker, a transparent acoustic tube and a standard 3.5 mm connector, the PMLN8120 is ideal for public-safety and professional users who need to hear radio traffic privately without broadcasting received audio through their speaker microphone.

The clear acoustic-tube design offers a professional, low-profile appearance while helping users monitor communications in crowds, public areas and noisy working environments. Because the PMLN8120 is receive-only, users continue transmitting through the push-to-talk button and microphone on their connected remote speaker microphone.

Motorola PMLN8120A Key Features

• Genuine Motorola receive-only earpiece

• Extra-loud audio output

• Wideband-ready speaker

• Clear, low-profile acoustic tube

• 3.5 mm audio connector

• Quick-disconnect acoustic tube

• Replaceable tube and rubber eartip

• Integrated clothing clip

• Designed for compatible Motorola remote speaker microphones

• Provides more discreet reception of radio traffic

• Transmit audio remains controlled through the connected RSM

• Suitable for public safety, security and professional operations

• Also known as the PMLN8120 or PMLN8120A

PMLN8120A Specifications

Motorola describes the PMLN8120 as a loud-audio, receive-only earpiece with a wideband-ready speaker and replaceable quick-disconnect clear tube. Motorola Solutions product information

Compatible Motorola Remote Speaker Microphones

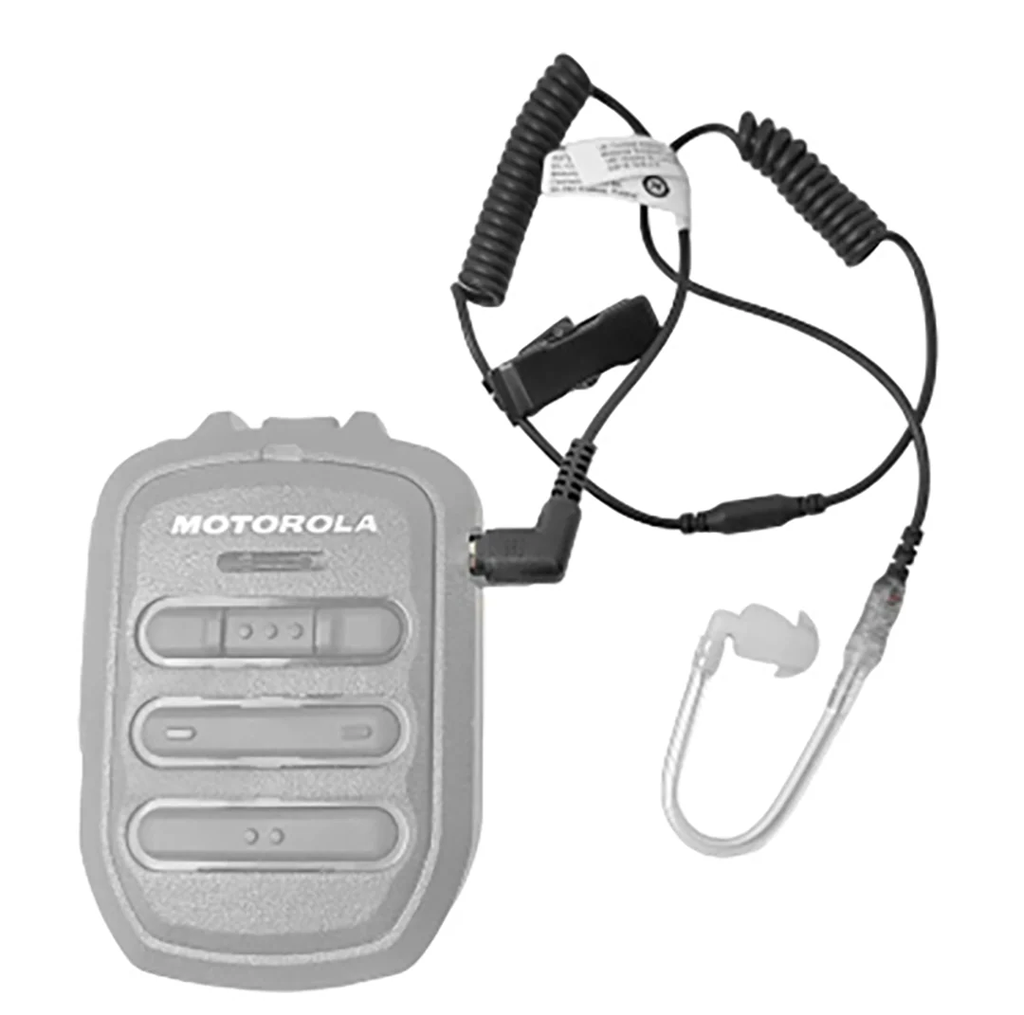

The PMLN8120A is designed to connect to a compatible Motorola remote speaker microphone equipped with the appropriate 3.5 mm secondary audio jack. Common applications include:

• Motorola PMMN4135 XVP850

• Motorola PMMN4136 XVP830

• Motorola PMMN4141 XVP750

• Motorola PMMN4142 XVP730

• Motorola PMMN4128 RM780

• Motorola PMMN4158 WM800 Wireless RSM

• Select additional Motorola speaker microphones with compatible 3.5 mm audio outputs

The earpiece connects to the remote speaker microphone—not directly to every Motorola portable radio. Compatibility depends on the speaker-microphone model, audio-jack design and system configuration. Confirm the exact RSM model before ordering.

Compatible Radio Families

When connected through a compatible Motorola speaker microphone, the PMLN8120 may be used in configurations involving select radios from these families:

• Motorola APX NEXT

• Motorola APX NEXT XE

• Motorola APX N70

• Motorola APX N50

• Motorola APX N30

• Select Motorola APX 6000 models

• Select Motorola APX 8000 models

• Motorola SRX 2200

• Motorola MOTOTRBO R7

• Motorola MOTOTRBO Ion

Radio compatibility is determined primarily by the attached speaker microphone. A radio with its own 3.5 mm port is not automatically compatible with the PMLN8120.

Discreet Receive-Only Communication

The PMLN8120 routes received radio audio from the remote speaker microphone directly to the user’s ear. This prevents routine radio traffic from being played aloud through the RSM speaker, offering greater privacy in public-facing and sensitive environments.

It is especially useful for:

• Police and law-enforcement personnel

• Fire and emergency-response teams

• Security officers

• Event personnel

• Transportation employees

• Healthcare security teams

• Casino and hospitality staff

• Industrial and utility workers

• Government and military users

Because it is a receive-only accessory, the PMLN8120 does not include its own microphone or PTT switch. Users transmit through the controls on their compatible remote speaker microphone.

Extra-Loud, Wideband-Ready Audio

The Motorola PMLN8120 is designed to support the loud-audio capability of compatible devices. Its wideband-ready speaker can deliver clear, intelligible voice audio when paired with properly configured Motorola equipment.

Actual volume depends on the radio, speaker microphone, system settings and surrounding noise. The radio or RSM volume may need to be adjusted for comfortable listening.

Clear Acoustic-Tube Design

The transparent acoustic tube provides a discreet appearance suitable for uniformed, plainclothes and public-facing personnel. The tube carries sound from the earpiece speaker to the ear while allowing the speaker module to remain clipped to the user’s clothing.

Benefits of the acoustic-tube design include:

• Low-profile appearance

• Clear private listening

• Secure positioning during movement

• Easy cleaning and maintenance

• Replaceable tube and eartip

• Quick disconnection when replacement is needed

For hygiene and dependable sound quality, the tube and eartip should be inspected regularly and replaced when they become damaged, blocked or difficult to clean.

PMLN8120 Replacement Parts

Packaging quantities and regional availability may vary.

Alternative Motorola Earpiece Options

Alternative accessories are not necessarily interchangeable. Connector type, radio family, speaker-microphone model and hazardous-location requirements must be verified before ordering.

PMLN8120 vs. RLN4941

The RLN4941 is an older receive-only comfort earpiece that also uses a 3.5 mm connection on compatible Motorola speaker microphones. The PMLN8120 is the newer extra-loud, wideband-ready option commonly associated with Motorola’s XVP and newer RSM platforms.

Choose the PMLN8120 when it is specifically listed for the connected microphone. Consider the RLN4941 only when compatibility documentation identifies it as the correct accessory for an older RSM.

PMLN8120 vs. PMLN8341

The PMLN8120 connects to a remote speaker microphone and handles received audio only. The connected RSM provides the microphone and PTT controls.

The PMLN8341 is a complete one-wire surveillance accessory that connects to a compatible radio and incorporates its own communication controls. Choose the PMLN8341 when a direct-radio surveillance solution is required rather than a secondary earpiece for an RSM.

PMLN8120 vs. PMLN8337

The PMLN8120 uses a clear acoustic tube and is intended for discreet receive-only listening through a compatible remote speaker microphone. The PMLN8337 uses an earbud-style design and functions as a more complete direct-to-radio communication accessory.

Choose the PMLN8120 for a traditional public-safety acoustic-tube appearance. Consider the PMLN8337 when an earbud-style, direct-radio accessory better suits the user’s equipment and duties.

Hazardous-Location Considerations

The PMLN8120 is listed in Motorola accessory catalogs for use in certain approved hazardous-location systems. Approval depends on the complete combination of radio, battery, remote speaker microphone and earpiece.

Never assume that a system is intrinsically safe merely because one component carries an approval. Verify the exact model revisions and UL-approved accessory combination before using the PMLN8120 in a hazardous environment.

Why Choose the Motorola PMLN8120A?

The Motorola PMLN8120A is an excellent choice for professionals who need private, dependable incoming audio while retaining the controls and microphone of their remote speaker mic. Its extra-loud output, wideband-ready speaker and replaceable clear tube make it well suited to demanding daily use.

Choose the PMLN8120A for:

• More private reception of sensitive radio traffic

• Compatibility with select modern Motorola RSMs

• Extra-loud audio in challenging environments

• A discreet, professional acoustic-tube design

• Replaceable components for easier maintenance

• Genuine Motorola fit and performance

Frequently Asked Questions

What is the Motorola PMLN8120A?

The PMLN8120A is an extra-loud, receive-only earpiece with a clear acoustic tube and 3.5 mm connector. It is designed to plug into compatible Motorola remote speaker microphones.

Does the PMLN8120 have a microphone?

No. It is a receive-only accessory. Users transmit through the microphone and PTT button on their connected remote speaker microphone.

Does the PMLN8120 plug directly into a radio?

It is primarily designed for compatible Motorola remote speaker microphones with the appropriate 3.5 mm audio jack. Do not assume it can connect directly to a radio simply because the radio has a similar-looking port.

Is the acoustic tube replaceable?

Yes. The clear tube uses a quick-disconnect design. The Motorola PMLN8092A is the replacement translucent-tube and rubber-eartip assembly.

Is the PMLN8120 compatible with the XVP850 and XVP830?

Yes. Motorola identifies the PMLN8120 as a secondary receive-only audio accessory for the XVP850 PMMN4135 and XVP830 PMMN4136 remote speaker microphones.

Can the PMLN8120 be used with the WM800?

Yes, it is listed as a compatible secondary audio accessory for the WM800 Wireless Remote Speaker Microphone. Verify the exact WM800 model and configuration before ordering.

What is the difference between PMLN8120 and PMLN8120A?

PMLN8120 is the base Motorola part number, while PMLN8120A identifies a product revision. Sellers and catalogs frequently use both numbers for the same earpiece family.
