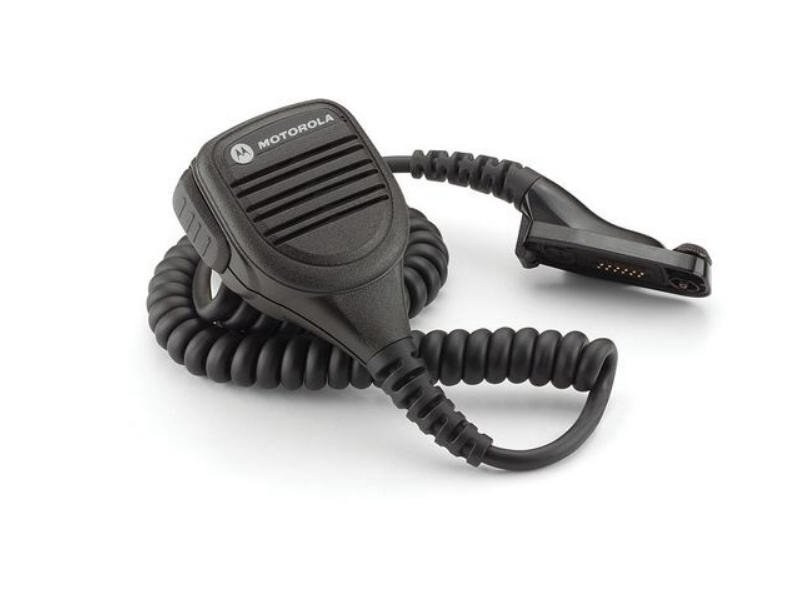

Motorola PMMN4062A IMPRES Remote Speaker Mic Noise Canceling: PMMN4062

Motorola PMMN4062A IMPRES Noise-Canceling Speaker Microphone for APX Radios

The Motorola PMMN4062A IMPRES Remote Speaker Microphone provides loud, intelligible audio and convenient shoulder-mounted radio controls for compatible Motorola APX portable radios. Designed for public safety and demanding professional environments, this genuine Motorola speaker mic combines noise-canceling acoustics, IMPRES audio, a programmable emergency button, a 3.5mm audio-accessory jack and a 360-degree rotating clothing clip.

The PMMN4062A allows users to transmit, receive calls and activate supported emergency functions without removing the radio from a duty belt, protective case or tactical vest. Its large microphone housing and controls are easier to operate while wearing gloves, making it a practical choice for police, emergency-response, security, utility and industrial personnel.

Unlike Motorola public-safety microphones with external antenna connections, the PMMN4062A is a conventional remote speaker microphone. It uses the antenna installed directly on the radio and does not require a separate PSM antenna.

PMMN4062A Features and Benefits

Noise-Canceling Microphone

The PMMN4062A uses noise-canceling acoustics to help reduce surrounding environmental noise and improve transmitted speech. This makes it especially useful near traffic, machinery, emergency vehicles, crowds and other noisy working environments.

For the best results, speak directly into the microphone and keep it properly positioned near the shoulder or upper chest.

Motorola IMPRES Audio

Motorola IMPRES technology allows the microphone and a compatible APX radio to work together using optimized audio parameters. This helps provide clear, consistent communication across supported operating conditions.

Available IMPRES functionality depends on the radio model, firmware, programming and system configuration.

Loud, Intelligible Speaker Audio

The PMMN4062A uses a high-output speaker designed for demanding public-safety environments. Its audio is intended to remain understandable when users are working around vehicles, equipment and other sources of background noise.

Motorola has described compatible APX public-safety audio accessories as providing audio that is clearer and up to 50% louder than earlier XTS-series remote speaker microphones. Actual perceived volume depends on radio settings, ambient noise and microphone placement.

Programmable Emergency Button

The accessible emergency button allows the user to activate supported emergency functions without reaching for the radio. The button’s exact operation depends on the radio programming and system configuration.

3.5mm Audio-Accessory Jack

A 3.5mm audio jack supports compatible receive-only earpieces, allowing incoming radio traffic to be heard more discreetly. The earpiece is sold separately.

Verify the plug style and accessory compatibility before ordering an earpiece.

360-Degree Rotating Clothing Clip

The rotating clip allows the microphone to be positioned on a uniform, vest, jacket or shoulder strap at the angle preferred by the user. Proper positioning keeps the speaker and microphone accessible while helping prevent the cable from interfering with movement.

Large, Glove-Friendly Design

The PMMN4062A has a relatively large microphone head and accessible controls. This makes it easier to locate and operate the push-to-talk and emergency controls while wearing work gloves or protective equipment.

IP54 Environmental Protection

The PMMN4062A is commonly specified with an IP54 environmental rating. This indicates protection against limited dust intrusion and splashing water under defined test conditions.

IP54 does not mean the microphone is waterproof or submersible. Inspect the accessory connector, housing and cable regularly, especially when the microphone is used outdoors.

Compatible Motorola APX Radios

The Motorola PMMN4062A is commonly listed for supported configurations of the following portable radios:

• Motorola APX 1000

• Motorola APX 3000

• Motorola APX 4000

• Motorola APX 4000Li

• Motorola APX 6000

• Motorola APX 6000Li

• Motorola APX 6000XE

• Motorola APX 7000

• Motorola APX 7000XE

• Motorola APX 8000

• Motorola APX 8000XE

• Motorola SRX 2200

Radio revisions, accessory connectors and regional configurations can vary. Confirm the exact radio model and accessory requirements before ordering.

Motorola PMMN4062A Specifications

PMMN4062A Compared With Other Motorola APX Speaker Mics

Compatibility, frequency-band support and certification can differ among these microphones. Verify each microphone against the exact radio configuration rather than selecting solely by cable length or appearance.

PMMN4062A vs. PMMN4059B

The PMMN4062A is a better choice when noise-canceling audio and a standard radio-mounted antenna arrangement are preferred. It does not require a separate antenna on the microphone.

The PMMN4059B is an 18-inch public-safety microphone with an external antenna connection. It is designed for compact installations where the radio is positioned relatively close to the shoulder microphone.

Choose the PMMN4059B only when an external PSM antenna arrangement is required and its radio and frequency compatibility have been confirmed.

PMMN4062A vs. PMMN4060B

The PMMN4060B is a 24-inch public-safety microphone with an external antenna connection. Its cable provides additional routing room between the radio and shoulder compared with the shorter PMMN4059B.

Choose the PMMN4062A when you want noise-canceling audio without purchasing and matching a separate microphone antenna. Choose the PMMN4060B when the external PSM antenna arrangement and 24-inch cable are required for the user’s equipment setup.

PMMN4062A vs. PMMN4061B

The PMMN4061B uses a 30-inch cable and external antenna connection. It is generally better suited to radios carried on a duty belt, beneath body armor or under protective clothing where greater cable-routing length is needed.

The PMMN4062A provides a simpler standard-speaker-microphone arrangement and emphasizes noise cancellation. The PMMN4061B provides greater routing flexibility and relocates the antenna to the microphone.

PMMN4062A vs. Motorola Public-Safety Microphones

The most important distinction is antenna placement:

• PMMN4062A: Uses the antenna installed on the radio

• PMMN4059B, PMMN4060B and PMMN4061B: Use an antenna connected to the public-safety microphone

The PMMN4062A avoids the need to select a separate PSM antenna. A public-safety microphone can place the antenna higher on the user’s body, but it requires the correct antenna for the radio’s frequency band.

Best Uses for the PMMN4062A

The Motorola PMMN4062A is an excellent choice for:

• Police and law-enforcement patrol

• Security personnel

• Emergency-response teams

• Utility and public-works crews

• Transportation and traffic-control operations

• Industrial and manufacturing facilities

• Personnel working around machinery or vehicle noise

• Users who wear work gloves

• APX users who do not require an external microphone antenna

• Personnel who need a receive-only earpiece connection

Important Intrinsic-Safety and HAZLOC Notice

Do not assume the PMMN4062A is approved for hazardous-location use based solely on an online product description.

Intrinsic-safety eligibility can depend on the exact microphone revision and the approved combination of radio, battery and accessory. Before using the PMMN4062A around flammable gases, vapors, fuels, combustible dust or ignitable fibers, verify the physical certification label and applicable Motorola approval documentation.

An environmental rating such as IP54 is not a hazardous-location certification.

Frequently Asked Questions

Is the PMMN4062A noise canceling?

The PMMN4062A is commonly described as a noise-canceling IMPRES remote speaker microphone. Its microphone acoustics are designed to reduce surrounding noise and improve transmitted speech in demanding environments.

Does the PMMN4062A require a separate antenna?

No. The PMMN4062A is a conventional remote speaker microphone and uses the antenna installed on the radio. It is different from the PMMN4059B, PMMN4060B and PMMN4061B public-safety microphones, which require compatible PSM antennas.

Does it work with the Motorola APX 6000?

The PMMN4062A is commonly listed for compatible versions of the Motorola APX 6000, APX 6000Li and APX 6000XE. Confirm the radio configuration and accessory connector before ordering.

Is the PMMN4062A compatible with the APX 8000?

The microphone is commonly listed for supported APX 8000 and APX 8000XE configurations. Compatibility should be verified using the complete radio model and current Motorola accessory documentation.

Can I connect an earpiece?

Yes. The PMMN4062A includes a 3.5mm audio-accessory jack for a compatible receive-only earpiece. The earpiece is generally sold separately.

Is the PMMN4062A waterproof?

No. The microphone is commonly listed with an IP54 rating, which provides resistance to dust and splashing water under controlled conditions. It is not designed for water submersion.

Does it have an emergency button?

Yes. The PMMN4062A includes an emergency button. Its operation depends on radio programming and system support.

Is the PMMN4062A intrinsically safe?

Do not assume hazardous-location approval without checking the label and Motorola documentation for the exact accessory and radio combination. IP54 protection does not establish intrinsic-safety approval.

Is this a genuine Motorola speaker microphone?

Yes. The PMMN4062A is a Motorola Solutions remote speaker microphone designed for compatible Motorola APX and SRX portable radios.
