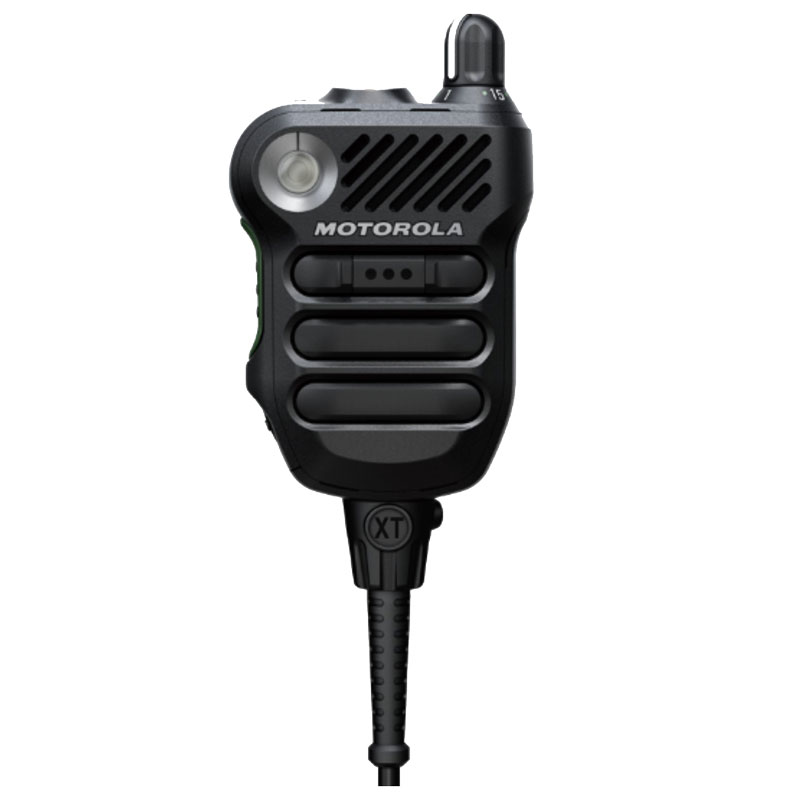

Motorola PMMN4154 XVE500 Extreme-Temperature Speaker Microphone

Motorola PMMN4154BBLK XVE500 Black Extreme-Temperature Remote Speaker Microphone

The Motorola PMMN4154BBLK XVE500 Remote Speaker Microphone is a premium extreme-duty black Motorola APX speaker microphone engineered for firefighters, public-safety personnel, emergency-response teams and industrial users operating in severe heat, water, wind and high-noise environments.

The PMMN4154BBLK combines Motorola's XVE500 extreme-environment design, four-microphone intelligent audio system, extreme-temperature cable, integrated channel-control knob, large Push-to-Talk button, emergency control, volume controls, ViQi support and IP68 environmental protection in a professional black housing.

Motorola identifies the PMMN4154BBLK as an XVE500 Remote Speaker Microphone, Black with Knob. Motorola Solutions

The XVE500 family was designed to withstand extreme heat exposure of 500°F (260°C) for up to five minutes under Motorola's specified conditions, making the PMMN4154BBLK particularly well suited to demanding fireground and emergency-response applications. Motorola Solutions

Motorola PMMN4154BBLK Key Features

• Genuine Motorola OEM remote speaker microphone
• XVE500 extreme-environment microphone platform
• Black housing
• Integrated channel-selection knob
• Extreme-temperature cable
• Designed for heat exposure up to 500°F / 260°C for up to 5 minutes
• Four high-dynamic-range microphones
• Multi-microphone noise suppression
• Automatic audio leveling
• IMPRES audio
• Large glove-friendly Push-to-Talk button
• Emergency control
• Volume control
• Programmable controls
• Dedicated ViQi button for supported configurations
• IP68 environmental protection
• Work-When-Wet design
• 3.5 mm receive-only accessory port
• Flexible wearing orientation
• HAZLOC capable in approved Motorola radio/battery/accessory configurations

Motorola designed the XVE500 for reliable communications around sirens, fire apparatus, pumps, machinery, wind and other high-noise environments. The four-microphone system and automatic audio processing help distinguish the user's voice from changing background noise. Motorola Solutions

What Radios Work With the Motorola PMMN4154BBLK?

Motorola's current documentation supports the PMMN4154 black XVE500 family with select APX configurations. The applicable radio version, firmware and accessory configuration should always be verified before ordering. support.motorolasolutions.com

Motorola specifically confirms that XVE500 PMMN4154 black variants are supported with the APX 6000 and APX 6000XE when running firmware R30.00.00 or greater. support.motorolasolutions.com

For the APX N70/N70 XE, Motorola's current approval documentation lists PMMN4154BBLK but also specifies separate cable requirements for the XVE500 configuration. This is important: do not assume the microphone connects directly to every listed radio without the required cable/configuration. Motorola Solutions

For additional compatibility information, see the Motorola APX Remote Speaker Microphone Guide.

Extreme-Temperature Performance

The PMMN4154BBLK is not simply a conventional Motorola shoulder microphone.

Motorola designed the XVE500 family for environments where extreme heat can become part of the operating conditions. The microphone is designed to withstand exposure of:

Up to 500°F (260°C) for up to five minutes

under specified test conditions. Motorola Solutions

This makes the PMMN4154BBLK an excellent choice for:

• Structural firefighting
• Fireground communications
• Search and rescue
• Emergency response
• Industrial fire brigades
• Refineries
• Oil and gas facilities
• Utilities
• Chemical processing facilities
• Heavy industrial environments

The 500°F specification represents short-duration extreme-heat resistance and should not be interpreted as a continuous 500°F operating-temperature rating.

Advanced Four-Microphone Noise Suppression

Communication becomes significantly more difficult around fire engines, sirens, pumps, machinery, wind and other sources of intense background noise.

The XVE500 uses four high-dynamic-range microphones, automatic audio leveling and noise-reduction technology to improve voice clarity in these environments. Motorola Solutions

Motorola also designed the microphone placement and water drainage so the XVE500 can be worn upright, upside down or sideways while maintaining effective audio performance. Motorola Solutions

Integrated Channel-Control Knob

One of the most important PMMN4154BBLK features is its integrated channel knob.

This gives users convenient access to supported channel-selection functions from the remote speaker microphone rather than requiring them to reach for a radio that may be underneath turnout gear or secured in a radio holster.

The channel knob is also one of the primary differences between the PMMN4154 and PMMN4152 XVE500 families.

PMMN4154BBLK vs. PMMN4154 Green

The PMMN4154 is available in both high-visibility green and black configurations.

The principal purchasing difference is the housing color. Both belong to the channel-knob XVE500 family. Motorola's current documentation identifies PMMN4154BBLK as the black XVE500 with knob and PMMN4154B as the high-impact green version with knob. Motorola Solutions

PMMN4154BBLK vs. PMMN4152

The Motorola PMMN4152 XVE500 is the closest alternative when a channel knob is unnecessary.

Choose PMMN4154BBLK when direct channel selection from the microphone is important.

Choose PMMN4152 when you need XVE500 extreme-environment capabilities but do not require the channel-control knob.

PMMN4154BBLK vs. PMMN4135 XVP850

Another excellent alternative is the Motorola PMMN4135 XVP850 Speaker Microphone.

The PMMN4135 provides premium four-microphone XVP audio, IP68 protection and an integrated channel knob. It is an excellent choice when advanced public-safety audio and direct channel control are required but the XVE500's specialized extreme-temperature construction is unnecessary. Battery Distributors

For fireground and extreme-temperature applications, PMMN4154BBLK is the stronger choice.

For general public-safety use where extreme-heat construction isn't necessary, the PMMN4135 XVP850 may be the more appropriate option.

PMMN4154BBLK vs. PMMN4136 XVP830

The Motorola PMMN4136 XVP830 Speaker Microphone is another alternative for compatible APX applications.

The PMMN4136 provides premium XVP audio, four-microphone noise suppression and IP68 environmental protection but eliminates the microphone-mounted channel knob and XVE500 extreme-temperature construction. Battery Distributors

Choose the PMMN4136 when advanced audio is required but neither extreme-heat capability nor microphone-mounted channel selection is necessary.

PMMN4154BBLK Specifications

Motorola's current XVE500 documentation supports these core specifications. support.motorolasolutions.com

Frequently Asked Questions

What is the Motorola PMMN4154BBLK?

The PMMN4154BBLK is the black version of Motorola's XVE500 extreme-environment remote speaker microphone with an integrated channel knob. Motorola specifically identifies PMMN4154BBLK as “XVE500 Remote Speaker Microphone, Black with Knob.” Motorola Solutions

What does BBLK mean in PMMN4154BBLK?

The suffix identifies a specific product revision/configuration, while BLK denotes the black-housing version. Because Motorola has produced multiple revisions of the XVE500, use the complete PMMN4154BBLK part number when the black B-revision configuration is required.

Does PMMN4154BBLK have a channel knob?

Yes. The integrated channel knob is one of the defining features of the PMMN4154 XVE500 family.

What is the difference between PMMN4154BBLK and PMMN4152BBLK?

Both are black XVE500 extreme-environment microphones. The primary operational difference is channel control:

PMMN4154BBLK — channel knob

PMMN4152BBLK — no channel knob

Motorola's current product documentation confirms this distinction. Motorola Solutions

Does PMMN4154BBLK work with APX 6000?

Yes, for supported APX 6000 configurations. Motorola specifically states that the PMMN4154 black XVE500 variants are supported on APX 6000/APX 6000XE with firmware R30.00.00 or greater. support.motorolasolutions.com

Does PMMN4154BBLK work with APX NEXT?

Yes. Motorola lists the XVE500 family for supported APX NEXT configurations, with minimum firmware requirements applying. Motorola Solutions

Does PMMN4154BBLK work with APX N70?

Motorola's current APX N70/N70 XE approval documentation lists PMMN4154BBLK, but it also specifies a separately purchased cable for the XVE500 configuration. Verify the complete radio/cable/microphone configuration before ordering. Motorola Solutions

Is PMMN4154BBLK waterproof?

Motorola's XVE500 platform is designed for severe environmental exposure and carries an IP68 rating. Motorola states that the APX NEXT XE and XVE500 were tested as a system to two meters for four hours. Motorola Solutions

Is PMMN4154BBLK heat resistant?

Yes. The XVE500 was designed to withstand heat exposure up to 500°F (260°C) for as long as five minutes under Motorola's specified conditions. Motorola Solutions

Is PMMN4154BBLK intrinsically safe?

The PMMN4154BBLK appears in Motorola hazardous-location approval documentation, but approval applies to the complete approved radio, battery, microphone and cable configuration. Do not assume the microphone by itself makes a radio system intrinsically safe. Motorola Solutions

Why Choose the Motorola PMMN4154BBLK XVE500?

The Motorola PMMN4154BBLK is designed for users who need more than a conventional remote speaker microphone. It combines XVE500 extreme-temperature construction, four-microphone noise suppression, IP68 environmental protection, direct channel control and a professional black housing.

For firefighters, rescue personnel, public-safety agencies and industrial teams working around extreme heat, water, wind, sirens and heavy machinery, the PMMN4154BBLK provides a purpose-built Motorola communication solution for severe operating environments.

If you need XVE500 extreme-environment performance without a channel knob, compare the Motorola PMMN4152 XVE500.

If extreme-temperature capability is unnecessary, compare the Motorola PMMN4135 XVP850 with channel control or the Motorola PMMN4136 XVP830 without channel control.

For a broader comparison of Motorola APX microphone options, see the Motorola APX Remote Speaker Microphone Guide.

Order the Motorola PMMN4154BBLK XVE500 when your application demands extreme-environment durability, advanced noise suppression, microphone-mounted channel control and the professional black XVE500 housing.
