Original Motorola PMLN8343A Three Wire Surveillance Kit: PMLN8343

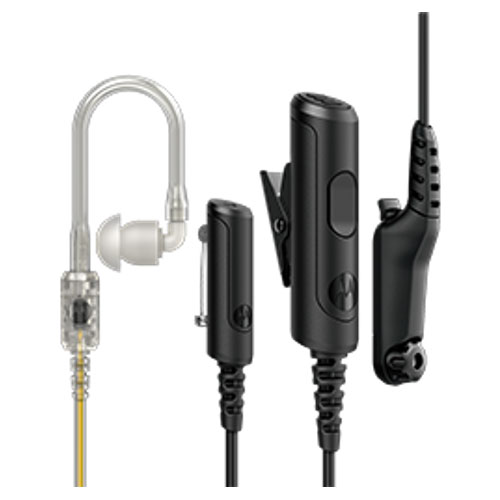

Motorola PMLN8343A 3-Wire IMPRES Surveillance Kit with Clear Acoustic Tube

The Motorola PMLN8343A 3-Wire IMPRES Surveillance Kit provides discreet, professional communication for security, public safety, event management and other operations where radio conversations and controls must remain private and unobtrusive.

Its three-wire design separates the earpiece, microphone and push-to-talk controls, allowing each component to be positioned independently beneath a uniform, jacket or other clothing. A clear acoustic tube delivers incoming messages directly to the user’s ear, while the remote microphone and PTT control enable discreet transmitting without reaching for the radio.

The PMLN8343A is an excellent choice for users who require greater concealment and placement flexibility than a conventional one- or two-wire surveillance kit.

Motorola PMLN8343A Key Features

• Genuine Motorola Solutions OEM accessory
• Three-wire IMPRES surveillance configuration
• Separate earpiece, microphone and PTT cables
• Clear acoustic-tube earpiece
• Replaceable acoustic tube with quick disconnect
• Remote microphone for flexible placement
• Remote push-to-talk control
• Front-facing programmable button
• Supports compatible radio loud-audio features
• Wideband-ready audio
• Motorola Mini-GCAI multipin connector
• UL-certified earpiece
• Designed for discreet transmitting and receiving
• Motorola part numbers: PMLN8343 and PMLN8343A

Motorola describes the PMLN8343A as a three-wire kit in which the individual wires are dedicated to receiving audio, the microphone and the PTT/program button. Motorola PMLN8343A product information

Compatible Motorola Radios

Motorola currently lists the PMLN8343A as compatible with:

• Motorola APX N30
• Motorola APX N50
• Motorola APX N70
• Motorola MOTOTRBO Ion
• Motorola MOTOTRBO R7
• Motorola MOTOTRBO R7a

Compatibility Warning

The PMLN8343A uses Motorola’s newer Mini-GCAI multipin connection. It should not be assumed compatible with older Motorola APX, XPR or MOTOTRBO portable radios, even when the accessory connections appear similar.

Compatibility should always be verified using the radio’s exact model number.

Motorola PMLN8343A Specifications

Three-Wire Design for Maximum Flexibility

The primary advantage of the PMLN8343A is its three-wire construction. Each cable performs a separate function:

1. One wire routes incoming audio to the clear acoustic-tube earpiece.
2. A second wire connects to the remote microphone.
3. A third wire connects to the PTT and programmable-button control.

This arrangement lets users position the components where they are easiest to operate or conceal. The earpiece cable can be routed behind the head, the microphone can be clipped near the chest or collar, and the PTT can be concealed inside a sleeve, pocket or jacket.

A three-wire system requires more careful cable routing than a one-wire kit, but it provides significantly greater control over component placement.

Discreet Clear Acoustic-Tube Earpiece

The clear acoustic tube delivers radio transmissions directly to one ear, helping prevent nearby individuals from overhearing sensitive communications. Its transparent design is less noticeable than a conventional black earbud or headset.

This makes the PMLN8343A especially useful for:

• Security and executive-protection teams
• Law-enforcement personnel
• Covert or plainclothes operations
• Casino security
• Retail loss prevention
• Hotel and hospitality security
• Event and venue personnel
• Public-safety support teams

Replaceable Quick-Disconnect Acoustic Tube

The acoustic tube can be disconnected and replaced without discarding the complete surveillance kit. This can reduce long-term ownership costs and makes it easier to maintain appropriate hygiene when equipment is reassigned.

The compatible Motorola PMLN8092A replacement acoustic tube and eartip is available separately.

Users should periodically inspect the tube for moisture, condensation, earwax or debris. A partially blocked tube can reduce audio volume even when the surveillance kit’s electronic components are working correctly.

Separate Remote Microphone

The dedicated microphone cable allows the microphone to be positioned independently from the PTT control. Placing the microphone close to the user’s mouth or upper chest can improve transmitted voice clarity while allowing the PTT button to remain concealed in a more convenient location.

This is one of the primary differences between the PMLN8343A and Motorola’s PMLN8342A two-wire kit, which combines the microphone, PTT and programmable button in one control module.

Remote PTT and Programmable Button

The third cable connects to a remote control containing:

• A side-mounted push-to-talk button
• A front-facing programmable button

The PTT allows the user to transmit without handling the radio. The programmable button can provide convenient access to an assigned radio feature, depending on the radio model, firmware and system programming.

Available button functions must be configured through the connected radio and may vary by system.

IMPRES and Wideband Audio

Motorola IMPRES audio technology allows a supported radio to identify the connected accessory and apply compatible audio settings. The PMLN8343A is also wideband ready and supports loud-audio capabilities enabled by compatible radios.

Actual audio performance depends on the radio, system bandwidth, programming, surrounding noise and proper earpiece fit.

UL-Certified Audio Accessory

The PMLN8343A is identified as a UL-certified accessory. For hazardous-location use, the complete radio configuration—including the radio, battery and audio accessory—must be approved for the applicable environment.

Connecting a certified earpiece to a standard radio does not automatically make the complete system intrinsically safe. Verify the entire equipment combination before operating in a classified location.

Best Applications for the PMLN8343A

The Motorola PMLN8343A is especially suitable for:

• Covert security assignments
• Executive and dignitary protection
• Law enforcement
• Casino surveillance
• Retail loss prevention
• Hotel security
• Event and concert staff
• Government facilities
• School and campus safety
• Public-safety operations
• Users who need independently positioned controls

Comparable and Replacement Products

Motorola does not currently identify a newer direct replacement or successor for the PMLN8343A. It remains a current Motorola surveillance accessory. The following products are comparable alternatives with simpler wiring or different earpiece styles.

PMLN8343A vs. PMLN8342A

The Motorola PMLN8342A is the closest comparable alternative to the PMLN8343A. Both offer a clear acoustic tube, IMPRES audio, remote PTT and a programmable button.

Choose the PMLN8343A when the microphone and PTT must be positioned independently. Choose the PMLN8342Awhen simpler cable routing is more important.

PMLN8343A vs. PMLN8341A

The PMLN8341A combines the acoustic tube, microphone and PTT into a one-wire system.

The PMLN8341A is appropriate for routine security, hospitality and retail operations. The PMLN8343A is better for specialized assignments requiring independent and concealed component placement.

PMLN8295A Earhook Alternative

The Motorola PMLN8295A is a two-wire IMPRES earpiece with a soft swivel earhook instead of an acoustic tube. It includes a remote microphone, PTT and programmable button.

Choose the PMLN8295A when comfort and an open earhook fit are more important than the nearly invisible appearance of a clear acoustic tube.

PMLN8337A Lightweight Alternative

The Motorola PMLN8337A is a lightweight one-wire earbud featuring an in-line microphone, PTT and removable earhook. It reduces cable clutter and is easy to issue to general employees, but it does not offer a separate microphone, concealed PTT or programmable accessory button.

These products are comparable alternatives rather than universal direct replacements. Confirm the exact radio model, connector and required safety approvals before substituting one accessory for another.

Why Choose the Motorola PMLN8343A?

The PMLN8343A provides Motorola’s most flexible wired surveillance configuration for compatible APX N-series, R7 and Ion radios. Its separate earpiece, microphone and PTT cables allow each component to be concealed and positioned according to the assignment.

For security and public-safety professionals who require discreet audio, convenient controls and flexible cable routing, the PMLN8343A offers capabilities that simpler one- and two-wire kits cannot fully duplicate.

Order the Motorola PMLN8343A Surveillance Kit

Purchase the Motorola PMLN8343A 3-Wire IMPRES Surveillance Kit for discreet transmitting and receiving with compatible Motorola APX N30, APX N50, APX N70, MOTOTRBO Ion, R7 and R7a radios.

Verify your radio model and Mini-GCAI connector before ordering.
