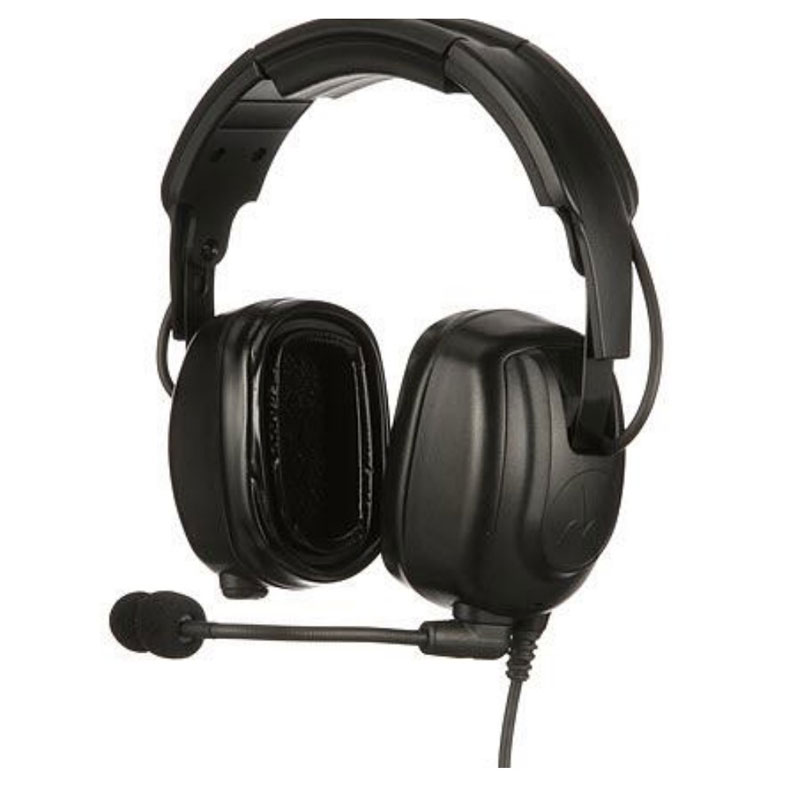

Original Motorola PMLN8086A OTH Double Muff Headset: PMLN8086

Motorola PMLN8086A OTH Double-Muff IMPRES Headset with 24 dB Noise Reduction

The Motorola PMLN8086A OTH Double-Muff Headset combines dependable two-way radio communication with hearing protection for personnel working around machinery, vehicles, construction equipment and other high-noise sources. “OTH” means over the head, referring to the headset’s traditional adjustable headband.

Dual-ear speakers deliver incoming radio audio to both ears, while the double-muff construction provides a 24 dB Noise Reduction Rating when correctly fitted. A flexible noise-canceling boom microphone helps separate the user’s voice from surrounding workplace noise, improving outgoing transmission clarity.

The ear-cup-mounted push-to-talk button is positioned for convenient access and can be operated while wearing work gloves. With Motorola IMPRES audio technology, a Mini-GCAI connection and TIA-4950/UL certification, the PMLN8086A is designed for demanding industrial and public-safety communication environments.

Motorola PMLN8086A Key Features

• Genuine Motorola Solutions OEM headset
• Over-the-head, or OTH, wearing style
• Double-muff, dual-ear speaker design
• 24 dB Noise Reduction Rating
• Flexible noise-canceling boom microphone
• PTT button mounted on the ear cup
• Glove-friendly push-to-talk operation
• Motorola IMPRES audio technology
• Intelligent Audio support with compatible radios
• Direct-to-radio wired connection
• Motorola Mini-GCAI connector
• Fixed radio downlead
• Supports receive audio through both ears
• Designed for comfortable extended wear
• TIA-4950/UL intrinsically safe classification
• Motorola part numbers: PMLN8086 and PMLN8086A

Motorola describes the PMLN8086A as an over-the-head headset with dual-ear speakers, a flexible noise-canceling boom microphone and easily accessible PTT.

Compatible Motorola Radios

The Motorola PMLN8086A is designed for select Motorola portable radios using the Mini-GCAI accessory interface, including:

• Motorola APX N30
• Motorola APX N50
• Motorola APX N70
• Motorola APX N70 XE
• Motorola MOTOTRBO Ion
• Motorola MOTOTRBO R7
• Motorola MOTOTRBO R7a

Important Compatibility Information

The PMLN8086A should not be assumed compatible with older Motorola APX, XPR or MOTOTRBO portable radios. Some older radios use accessory connections that may look similar but have different electronic and mechanical requirements.

Verify the radio’s complete model number and Mini-GCAI connection before ordering.

Motorola PMLN8086A Specifications

24 dB Hearing Protection for Noisy Workplaces

The PMLN8086A provides a Noise Reduction Rating of 24 dB, helping reduce the amount of environmental noise reaching the user’s ears when the headset is correctly fitted and used.

Its dual-muff construction covers both ears, providing more acoustic isolation than a single-ear earpiece, acoustic-tube surveillance kit or conventional remote speaker microphone.

The PMLN8086A is particularly suitable for:

• Manufacturing plants
• Construction sites
• Warehouses and distribution centers
• Airport ground operations
• Utilities and energy operations
• Transportation facilities
• Public works departments
• Heavy-equipment operators
• Industrial maintenance teams
• Other high-noise environments

The published NRR does not guarantee the same real-world reduction for every wearer. Employers should select and use hearing protection in accordance with their hearing-conservation program, workplace noise measurements and applicable safety regulations.

Dual-Muff Receive Audio

Incoming radio calls are delivered through speakers covering both ears. This helps users hear important messages in areas where machinery, engines, power tools or heavy traffic might overpower the radio’s built-in speaker.

The double-muff design also isolates the user from surrounding sound. Workers who need to hear alarms, warning signals or nearby personnel should follow their organization’s safety procedures when using dual-ear hearing protection.

Noise-Canceling Boom Microphone

The adjustable boom microphone can be positioned close to the user’s mouth for clearer outgoing speech. Its noise-canceling design helps reduce the amount of surrounding workplace noise transmitted over the radio.

This is especially useful around:

• Engines and generators
• Manufacturing machinery
• Construction equipment
• Aircraft and ground-support vehicles
• Industrial ventilation systems
• Crowded or high-activity work areas

The microphone boom can be repositioned to accommodate the user and maintain an appropriate distance from the mouth.

Glove-Friendly Ear-Cup PTT

The PMLN8086A places its push-to-talk button directly on the ear cup, allowing users to transmit without removing the radio from a belt, vest or carrying case.

The PTT is designed for easy access even when wearing work gloves. This is beneficial for equipment operators, construction crews, maintenance personnel and other users who must keep their hands available for tools or machinery.

Comfortable Over-the-Head Design

A conventional over-the-head band helps distribute the headset’s weight and maintain consistent pressure around both ears. This can provide a secure fit during extended shifts and active work.

The over-the-head configuration is generally best for users who:

• Do not need to wear a full hard hat
• Prefer a traditional headset fit
• Want stable ear-cup positioning
• Frequently remove and replace the headset
• Need dependable dual-ear sealing

Users who wear hard hats or protective helmets may prefer the PMLN8085A behind-the-head version or a compatible helmet-mounted headset.

IMPRES and Intelligent Audio

Motorola IMPRES technology allows compatible radios to recognize the connected audio accessory and apply supported audio settings. The PMLN8086A also supports Intelligent Audio functionality available through compatible Motorola radios.

These features can help provide more consistent audio performance under changing operating conditions. Actual behavior depends on the connected radio, system programming, firmware and audio configuration.

TIA-4950/UL Intrinsic-Safety Classification

The PMLN8086A is identified as a TIA-4950/UL intrinsically safe accessory. For use in a hazardous or classified location, the complete system must be approved—including the radio, battery and headset.

Connecting the PMLN8086A to a standard radio does not make that radio intrinsically safe. Users should verify the complete approved equipment combination through Motorola documentation and their organization’s safety requirements.

Recommended Applications

The Motorola PMLN8086A is recommended for:

• Manufacturing personnel
• Construction crews
• Utility and energy workers
• Airport ground teams
• Warehouse employees
• Heavy-equipment operators
• Industrial maintenance personnel
• Transportation operations
• Public works departments
• Public-safety teams
• Personnel working in sustained high noise

Comparable and Replacement Products

Motorola does not currently identify a direct successor that replaces the PMLN8086A. It remains a current Motorola headset. The PMLN8085A behind-the-head headset is its closest comparable alternative.

PMLN8086A vs. PMLN8085A

The Motorola PMLN8085A is the closest alternative to the PMLN8086A. Both headsets provide:

• Dual-ear speakers
• Double-muff construction
• 24 dB Noise Reduction Rating
• Flexible noise-canceling boom microphone
• Ear-cup-mounted PTT
• Motorola IMPRES technology
• Mini-GCAI direct radio connection
• TIA-4950/UL classification

The principal difference is the headband position.

Choose the PMLN8086A when a conventional headband provides the most comfortable and stable fit. Choose the PMLN8085A when additional clearance is needed over the top of the head.

The PMLN8085A is an alternative wearing style—not a confirmed replacement or upgraded version of the PMLN8086A.

PMLN8265A, PMLN8266A and PMLN8267A Alternatives

Motorola also offers compatible 3M Peltor-style headset options in several configurations:

• PMLN8265A: Headband headset
• PMLN8266A: Neckband headset
• PMLN8267A: Hard-hat-attached headset

These products may require a compatible PTT interface, such as the Motorola PMLN8297A GCAI-Mini PTT Nexus adapter, and should not be considered plug-and-play replacements for the PMLN8086A.

They are worth considering when a specialized helmet attachment, modular PTT connection or different protective-headset configuration is required.

PMLN8337A Lightweight Alternative

The Motorola PMLN8337A is a one-wire IMPRES earbud with a removable earhook, integrated microphone and PTT. It is a lighter and less expensive option for users working in moderate-noise areas.

However, the PMLN8337A does not provide double-muff ear coverage or a published 24 dB Noise Reduction Rating. It is not a hearing-protection replacement for the PMLN8086A.

PMLN8086A vs. Lightweight Radio Earpieces

Why Choose the Motorola PMLN8086A?

The PMLN8086A is designed for personnel who must communicate clearly while working around substantial background noise. Its double-muff ear protection, noise-canceling boom microphone and accessible PTT address both sides of the communication problem: hearing incoming calls and sending understandable transmissions.

Its traditional over-the-head band provides a secure fit, while Motorola IMPRES integration and the Mini-GCAI connection make it a purpose-built accessory for compatible R7, Ion and APX N-series radios.

Order the Motorola PMLN8086A OTH Headset

Purchase the Motorola PMLN8086A Over-the-Head Double-Muff IMPRES Headset for clear communications and 24 dB hearing protection with compatible Motorola APX N30, APX N50, APX N70, APX N70 XE, MOTOTRBO Ion, R7 and R7a portable radios.

Confirm your radio model, accessory connection and required hazardous-location approval before ordering.
