Original Motorola PMLN8085A BTH Double Muff Headset: PMLN8085

Motorola PMLN8085A BTH IMPRES Behind-the-Head Headset with 24 dB Hearing Protection

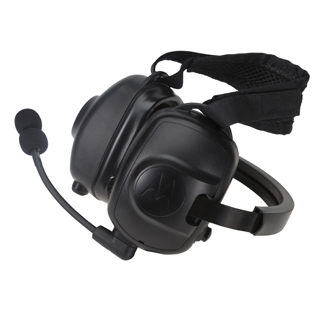

The Motorola PMLN8085A BTH Headset is a heavy-duty, dual-ear communication headset designed for clear radio conversations and hearing protection in loud working environments. “BTH” means behind the head, describing the headset band’s low-profile wearing position behind the user’s head rather than across the top.

Equipped with dual-ear speakers, a flexible noise-canceling boom microphone and an easily accessible push-to-talk button, the PMLN8085A delivers clear transmit and receive audio in manufacturing facilities, construction sites, utilities, transportation operations and other high-noise workplaces.

The behind-the-head design can also accommodate many hard hats and safety helmets, making this genuine Motorola headset an excellent choice for personnel who need hearing protection and dependable two-way radio communication during extended shifts.

Motorola PMLN8085A Key Features

• Genuine Motorola Solutions OEM headset
• Behind-the-head, or BTH, wearing style
• Dual-muff, dual-ear speaker design
• 24 dB Noise Reduction Rating
• Flexible noise-canceling boom microphone
• Push-to-talk button located on the ear cup
• Large PTT control can be operated while wearing gloves
• IMPRES audio technology
• Intelligent Audio support with compatible radios
• Direct-to-radio wired connection
• Motorola Mini-GCAI connector
• Designed for extended professional wear
• Compatible with many safety helmets and hard hats
• TIA-4950/UL intrinsically safe classification
• Motorola part numbers: PMLN8085 and PMLN8085A

Motorola specifies dual-ear speakers, a noise-canceling boom microphone, easily accessible PTT and a 24 dB Noise Reduction Rating for the PMLN8085A. Motorola PMLN8085 product information

Compatible Motorola Radios

Motorola lists the PMLN8085A as compatible with the following radios:

• Motorola APX N30
• Motorola APX N50
• Motorola APX N70
• Motorola APX N70 XE
• Motorola MOTOTRBO Ion
• Motorola MOTOTRBO R7
• Motorola MOTOTRBO R7a

Compatibility is confirmed on Motorola’s current PMLN8085A product listing.

Important Compatibility Information

The PMLN8085A uses Motorola’s Mini-GCAI accessory connector. It should not be assumed compatible with older APX, XPR or MOTOTRBO radios that use a different accessory interface, even when their side connectors appear similar.

Always verify the exact radio model before ordering.

Motorola PMLN8085A Specifications

24 dB Noise Reduction Rating

The PMLN8085A carries a Noise Reduction Rating of 24 dB, helping reduce the wearer’s exposure to high ambient noise when properly fitted and used as directed. Its dual-muff construction covers both ears, providing substantially more acoustic isolation than a single-ear earpiece or surveillance kit.

This makes the headset a strong choice for:

• Manufacturing plants
• Construction sites
• Airport ground operations
• Warehouses and distribution centers
• Utility and maintenance crews
• Transportation operations
• Equipment operators
• Industrial facilities
• Other high-noise workplaces

An NRR value does not guarantee a specific real-world noise reduction for every user or environment. Employers should follow their occupational hearing-conservation program and applicable safety requirements when selecting protective equipment.

Noise-Canceling Boom Microphone

The flexible boom microphone can be positioned close to the user’s mouth for clearer outgoing speech. Its noise-canceling design helps reduce surrounding background noise from reaching the radio transmission, improving voice intelligibility in noisy operations.

The boom can be adjusted for proper positioning without requiring the user to hold an external microphone. This allows personnel to keep their hands available for tools, equipment and other work tasks.

Dual-Ear Receive Audio

Incoming radio traffic is delivered through speakers covering both ears. This dual-ear arrangement helps users hear important calls in areas where machinery, vehicles, equipment or crowds could overpower a conventional radio speaker.

Unlike electronic active-noise-canceling consumer headphones, the PMLN8085A primarily uses its physical dual-muff construction to provide hearing protection. Its noise-canceling feature applies to the boom microphone to improve transmitted speech.

Glove-Friendly Push-to-Talk Control

The PTT button is positioned on the ear cup for quick access. Its location and design allow personnel to transmit without reaching for the radio, even when wearing work gloves.

This can be particularly useful for construction workers, equipment operators, maintenance technicians and public-safety personnel who cannot easily access a belt-mounted radio while working.

Behind-the-Head Design for Hard-Hat Use

The behind-the-head support band sits low around the back of the wearer’s head rather than across the crown. This configuration can provide more room for many protective helmets and hard hats.

The design also allows the headset to remain secure during movement while keeping the top of the user’s head unobstructed. Compatibility with a specific helmet should be checked before operational use because helmet shapes and suspension systems vary.

IMPRES and Intelligent Audio Technology

Motorola IMPRES technology allows supported radios to recognize and optimize compatible audio accessories. The PMLN8085A also supports Motorola Intelligent Audio functionality, which can help the radio manage audio output according to operational conditions and programmed settings.

Audio behavior depends on the connected radio, radio programming, firmware and system configuration.

TIA-4950/UL Intrinsic-Safety Classification

The PMLN8085A is identified as a TIA-4950/UL-rated accessory. For hazardous-location use, the headset must be paired with an appropriately approved radio and battery as part of a certified system.

An intrinsically safe accessory does not make a standard radio intrinsically safe. Confirm the complete radio, battery and accessory combination against Motorola documentation and your organization’s safety requirements before entering a classified environment.

Recommended Applications

The Motorola PMLN8085A is particularly suitable for:

• Heavy manufacturing
• Construction and contracting
• Mining and aggregate operations
• Utilities and energy
• Transportation and logistics
• Airport ramp operations
• Public works departments
• Equipment and vehicle operators
• Industrial maintenance
• Emergency and public-safety operations

Comparable and Replacement Products

Motorola does not currently identify a direct superseding replacement for the PMLN8085A. It remains an active headset model. The PMLN8086A is its closest Motorola alternative.

Motorola PMLN8086A: Closest Comparable Alternative

The Motorola PMLN8086A is the closest alternative to the PMLN8085A. It offers:

• Dual-ear speakers
• 24 dB Noise Reduction Rating
• Flexible noise-canceling boom microphone
• Ear-cup-mounted PTT
• IMPRES audio
• Mini-GCAI radio connection
• TIA-4950 classification

The primary difference is the headband position:

• Choose the PMLN8085A when a behind-the-head band is preferred or when additional clearance is needed for compatible head protection.
• Choose the PMLN8086A when a conventional over-the-head band offers the preferred fit.

The PMLN8086A is an alternative wearing style, not an upgrade or confirmed superseding replacement. Motorola PMLN8086A product information

Motorola PMLN8337A: Lightweight Alternative

The PMLN8337A is a one-wire IMPRES earbud with an in-line microphone, PTT, removable earhook and three eartip sizes. It is much lighter and less bulky than the PMLN8085A, making it useful in moderate-noise workplaces.

It does not provide the PMLN8085A’s dual-ear coverage or 24 dB hearing protection.

Motorola PMLN8295A: Two-Wire Earhook Alternative

The PMLN8295A provides a two-wire IMPRES configuration with a swivel earhook, remote microphone, PTT and programmable button. It is appropriate when users need private single-ear reception and flexible control placement but do not require dual-muff hearing protection.

Motorola PMLN8342A: Discreet Surveillance Alternative

The PMLN8342A features a clear acoustic tube, separate receive-audio wire and a second wire containing the microphone, PTT and programmable button. It is a better option for discreet security work but is not a hearing-protection substitute for the PMLN8085A.

PMLN8085A vs. PMLN8086A

Why Choose the Motorola PMLN8085A?

The PMLN8085A combines professional radio audio, noise reduction and a helmet-friendly behind-the-head design in one genuine Motorola accessory. It is especially valuable for personnel working in areas where important radio traffic must remain audible over sustained machinery or vehicle noise.

With its dual-ear speakers, 24 dB NRR, noise-canceling boom microphone and glove-friendly PTT, the PMLN8085A is built for clear communication during demanding industrial and public-safety assignments.

Order the Motorola PMLN8085A BTH Headset

Purchase the Motorola PMLN8085A Behind-the-Head IMPRES Headset for loud-workplace communication with compatible Motorola APX N30, APX N50, APX N70, APX N70 XE, MOTOTRBO Ion, R7 and R7a radios.

Before ordering, confirm the radio model, Mini-GCAI connector and any required hazardous-location certification.
