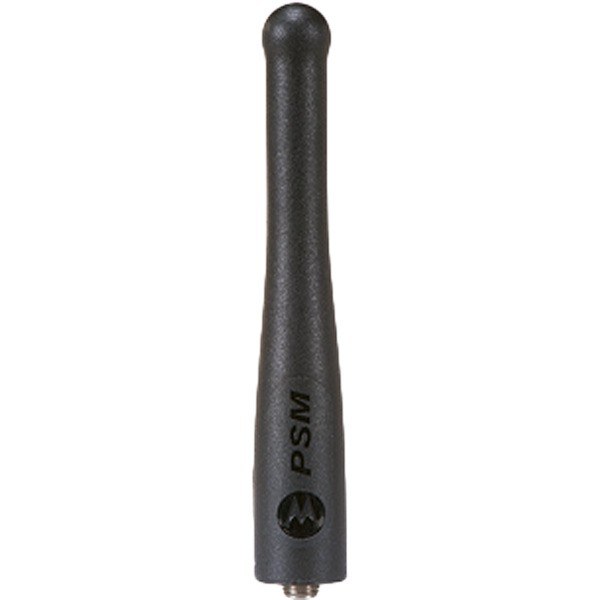

Motorola PMAF4002A 700/800 MHz Public-Safety Microphone Antenna
Part Number |
PMAF4002 |
The Motorola PMAF4002A antenna is a genuine Motorola Solutions 700/800 MHz stubby antenna designed specifically for compatible APX public-safety remote speaker microphones. Operating across the 764–870 MHz frequency range, it provides the antenna connection required for transmitting and receiving radio communications through a properly equipped public-safety microphone.
Its compact stubby design helps keep the antenna unobtrusive when the microphone is positioned near the user’s shoulder. Mounting the communication antenna on a compatible public-safety microphone can place it higher on the body than a belt-worn radio, supporting practical field operation for public-safety personnel.
Designed for APX Public-Safety Microphones
The PMAF4002A attaches to select Motorola public-safety microphones used with compatible 700/800 MHz APX radios. When the microphone is connected, the radio’s RF signal is routed through the microphone cable to the antenna mounted on the microphone.
This configuration allows law enforcement officers, firefighters, emergency responders and other radio users to keep the portable radio securely on a belt or equipment harness while positioning the antenna and microphone closer to shoulder level.
Motorola PMAF4002A Features
<ul>
- Genuine Motorola Solutions antenna
- Manufacturer part number: PMAF4002A
- Also identified as PMAF4002
- Designed for public-safety microphones
- 700/800 MHz frequency band
- 764–870 MHz operating range
- Compact stubby antenna design
- Approximately 3.5 inches long
- Durable black construction
- Designed for select Motorola APX 6000 and APX 7000 systems
- Replacement for a damaged or missing microphone-mounted antenna
Compatible Motorola Equipment
The PMAF4002A is designed for select 700/800 MHz public-safety microphone configurations used with radios from the following families:
- Motorola APX 6000
- Motorola APX 6000XE
- Motorola APX 7000
- Motorola APX 7000XE
It is commonly associated with compatible public-safety microphone models from the following series:
- Motorola PMMN4059 series
- Motorola PMMN4060 series
- Motorola PMMN4061 series
Compatibility notice: Verify the exact microphone model, connector and frequency configuration before ordering. Compatibility with a radio does not automatically mean that the antenna will attach directly to that radio.
Important Installation Warning
The Motorola PMAF4002A is designed for compatible public-safety microphones only. It should not be installed directly on a portable radio as a substitute for the radio’s standard antenna.
A public-safety microphone that routes RF through its cable must have the correct frequency-matched antenna installed before the radio is used to transmit. Operating the system without the proper microphone antenna may reduce communication performance and could expose the radio equipment to an improper RF load.
Why Choose the Motorola PMAF4002A?
The antenna is an essential component of an antenna-equipped public-safety microphone. A cracked, loose, damaged or missing antenna can reduce transmission range and reception quality. The genuine Motorola PMAF4002A provides the correct 764–870 MHz coverage and compact profile for compatible APX microphone configurations.
Choose the Motorola PMAF4002A 700/800 MHz public-safety microphone antenna when replacing a damaged or missing antenna on a compatible Motorola APX remote speaker microphone.
